Yamamoto Sound Craft YS-605P 38cm flat baffle speaker 1

YS-605P 605A or 605B ALTEC coaxial speaker unitsYamamoto Sound CraftThis speaker system is refined and mounted on a simple flat baffle. With a high efficiency of about 100dB/1W.1m, a small output vacuum tube amplifier can obtain a vibrant sound ALTEC coaxial unitYamamoto Sound CraftIt was remodeled as an original specification unit that improved sound quality by pouring in the long-standing technology of.

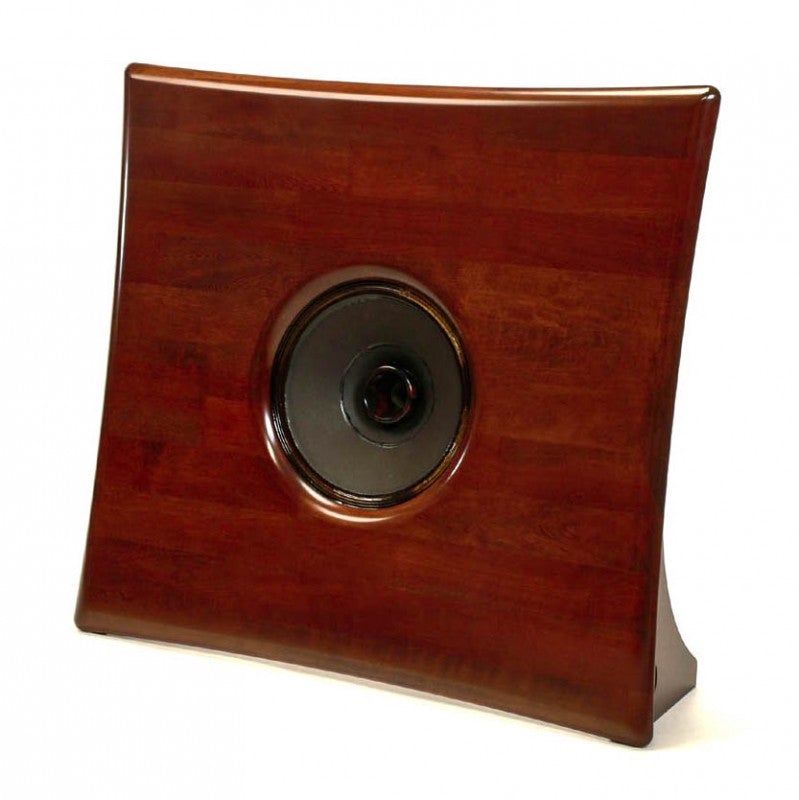

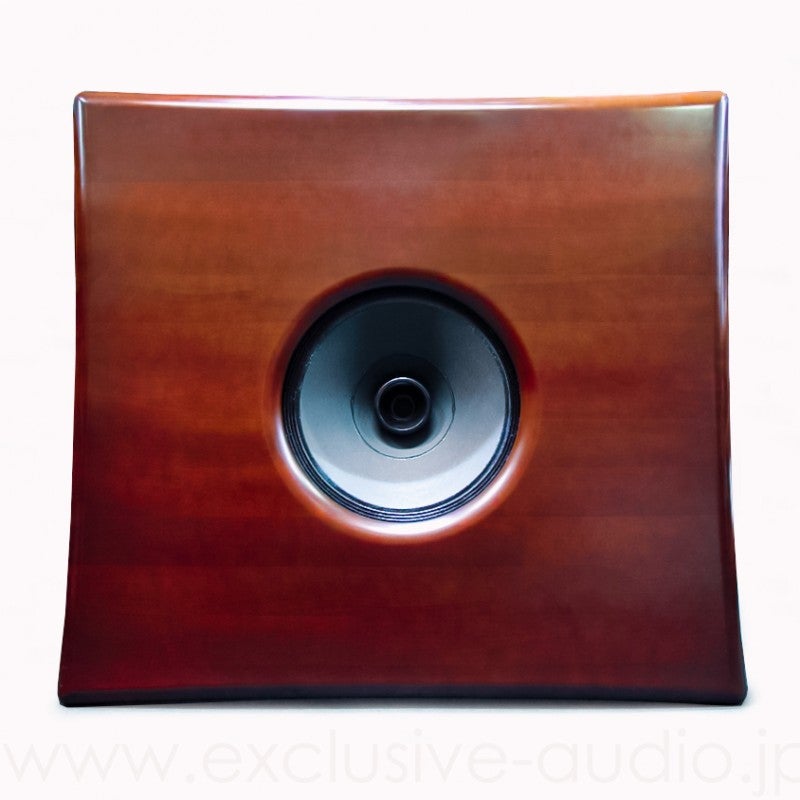

Simplified flat baffle without box

The unit adopts a flat baffle system 605A,B it is easy to obtain a relatively low bass level with few mid-range excitement. Planar baffles provide natural and clear sounds that cannot be obtained by enclosures. The low frequency is modest, but it is difficult to clarify the mid-low range.
We have succeeded in commercializing the baffle at a low price by luxuriously adopting the composite material of Asada cherry blossoms, which has the highest sound as a speaker material.

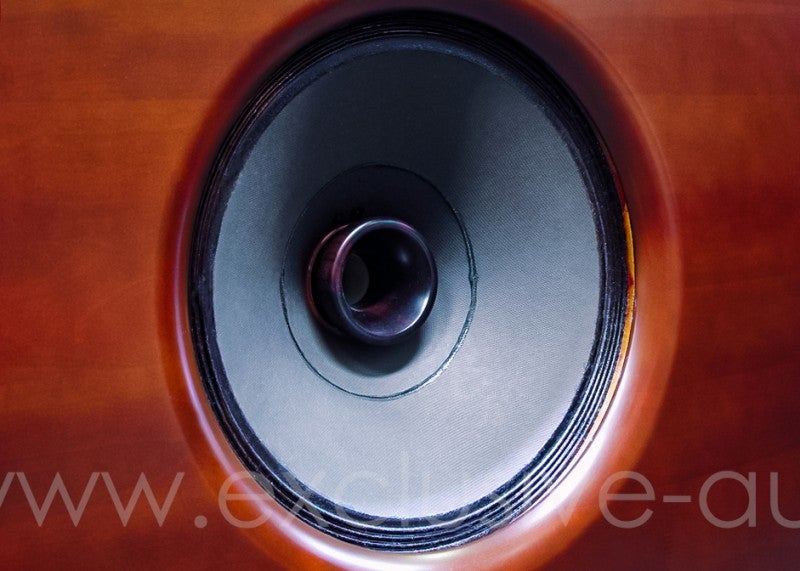

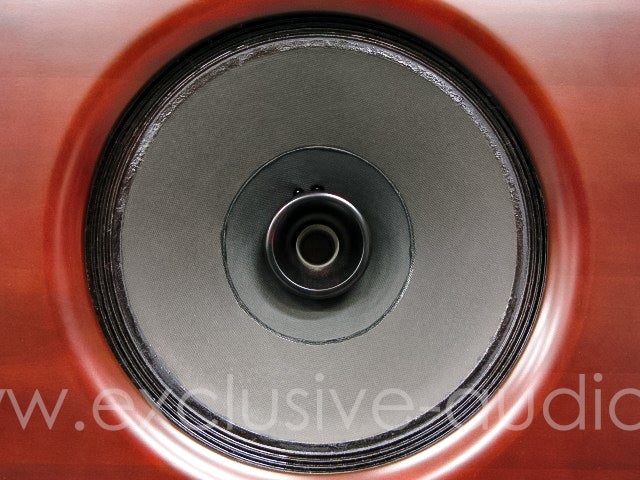

Adoption of round horn by cutting ebony material

The most characteristic of the YS-605P is the adoption of round horn by original ebony material shaving. It is a horn unit with little resonance by hard and dense solid ebony material. The shape of the horn is a round short type with minimal impact on the woolen unit and a horn with high cutoff frequency.

A simple network of condensers

ALTEC consists of a network that suppresses the midsonic part and summarizes the frequency characteristics.Yamamoto Sound CraftWe designed the original horn unit with the aim of adopting a network that can combine filter and attenuator with one condenser using the attenuation characteristics of this treble range. An extremely simple network of capacitors provides practical frequency characteristics, minimizing the discontinuity of phase characteristics between bass and treble.

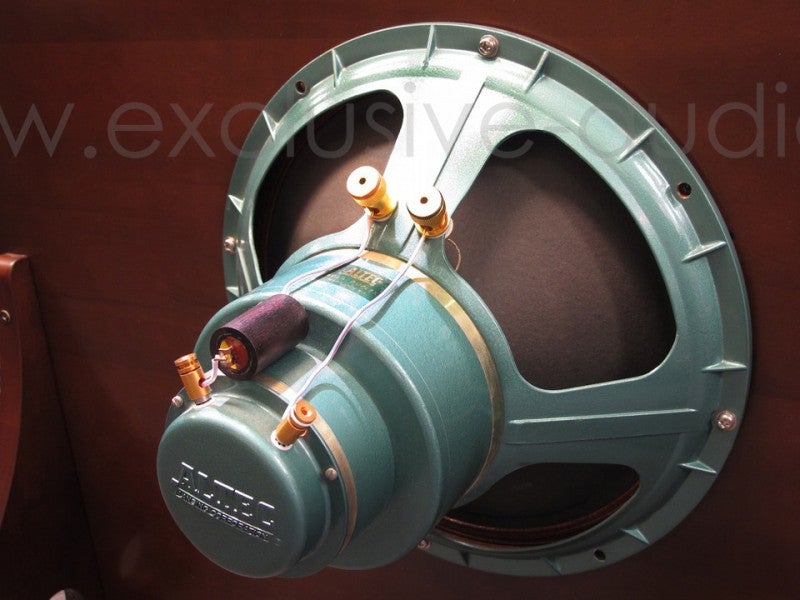

The filter capacitor uses a high-performance lug terminal type polypropylene capacitor from Dearborn, USA, which impregnates high-strength epoxy resin in an ebony case. The speaker terminal has been replaced with the original large terminal of Yamamoto Acoustic Co., Ltd., and the contacts of the terminal part have decreased by 4 in total, and the amount of information of the music has been greatly increased.

In the past, ALTEC604,605 speakers were said to be suitable for jazz and popular, but not for classical music, but these improvements also make it more compatible with classical music.

Type	Flat baffle type 38cm coaxial type 2way speaker system
Speaker Unit	ALTEC or (Yamamoto Sound CraftModified by)
Unit quality for medium and high sound	Ebony Material Processed Products/Round Horn
Surface baffle material	Asada Sakura Material 25mm thick, urethane coating
Impedance	16Ω
Frequency Characteristics	35Hz~18,000Hz
Dimensions	996(W)x910(H)x285(D)mm
Weight	36kg

* The YS-605P uses vintage units. These units are manufactured about 40 years ago and their condition varies depending on the unit. There are some differences in state, appearance, and sound quality, such as those where old vibration plates can remain as they are, and those that have been replaced by replacing vibration boards. Please note that there may be differences in product delivery.
