Yamamoto Sound Craft UX-UX dual use tube socket

Product code:

Yamamoto Sound Craft UX-UX dual use tube socket

¥9,260 円
¥9,260 円
Our special price sold out
tax included. Shipping feeis calculated at checkout.
View details

This is a made-to-order item. Estimated shipping date is approximately 2 business days. Shipping may be delayed depending on manufacturer stock status.

high quality teflon socket

Socket that can use two types of UX type vacuum tubes

Description

UX systemoutput tubeDual-use design allows for flexible use of

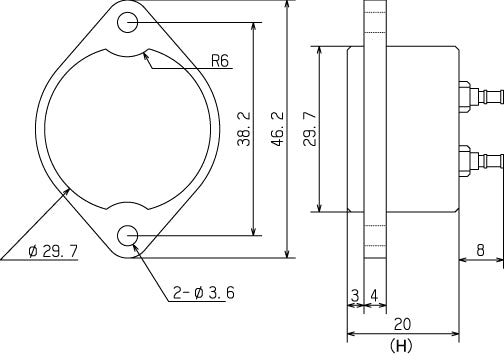

UX-UX dual use tube sockets are typical UX type tube sockets such as 300B, 2A3, 45, and 71A.output tubeThis is a highly versatile socket that also supports rectifier tubes and voltage amplification tubes such as 80, 5Z3, and VT-52. The design assumes that the tube type will be changed within the UX standard, such as replacing 300B and 2A3 and comparing the sound characteristics. The mounting holes are 30mmφ and the screw spacing is 38.2mm, making it compatible with many UX chassis layouts.

High-precision holding structure designed for replacement purposes

Assuming frequent vacuum tube replacement, the socket body is machined and molded from fluororesin, and a round cutting pin is fixed with high precision. This prevents looseness even when the tube is repeatedly inserted and removed, and suppresses poor contact and sound quality deterioration due to vibration. Due to its dual-use UX-UX nature, the structure places particular emphasis on stable holding power and high reproducibility.

Stable operation with high insulation fluororesin body

The body material is made of fluororesin (tetrafluoroethylene), which boasts the highest level of electrical insulation and low dielectric constant. It also has excellent heat resistance and can be safely used in output stages and rectification stages where high voltage is applied, contributing to long-term stable operation as a core component of vacuum tube amplifiers.

Reliable contact with phosphor bronze pin and thick gold plating

The socket pin uses phosphor bronze, which has excellent strength and spring properties, and maintains stable contact pressure over a long period of time. Furthermore, by applying thick gold plating on top of the base treatment to eliminate magnetism, contact resistance is reduced, preventing loss of minute signals and muddying of the sound.output tube・Designed so that the purity of the sound is not compromised in any use as a rectifier tube.
