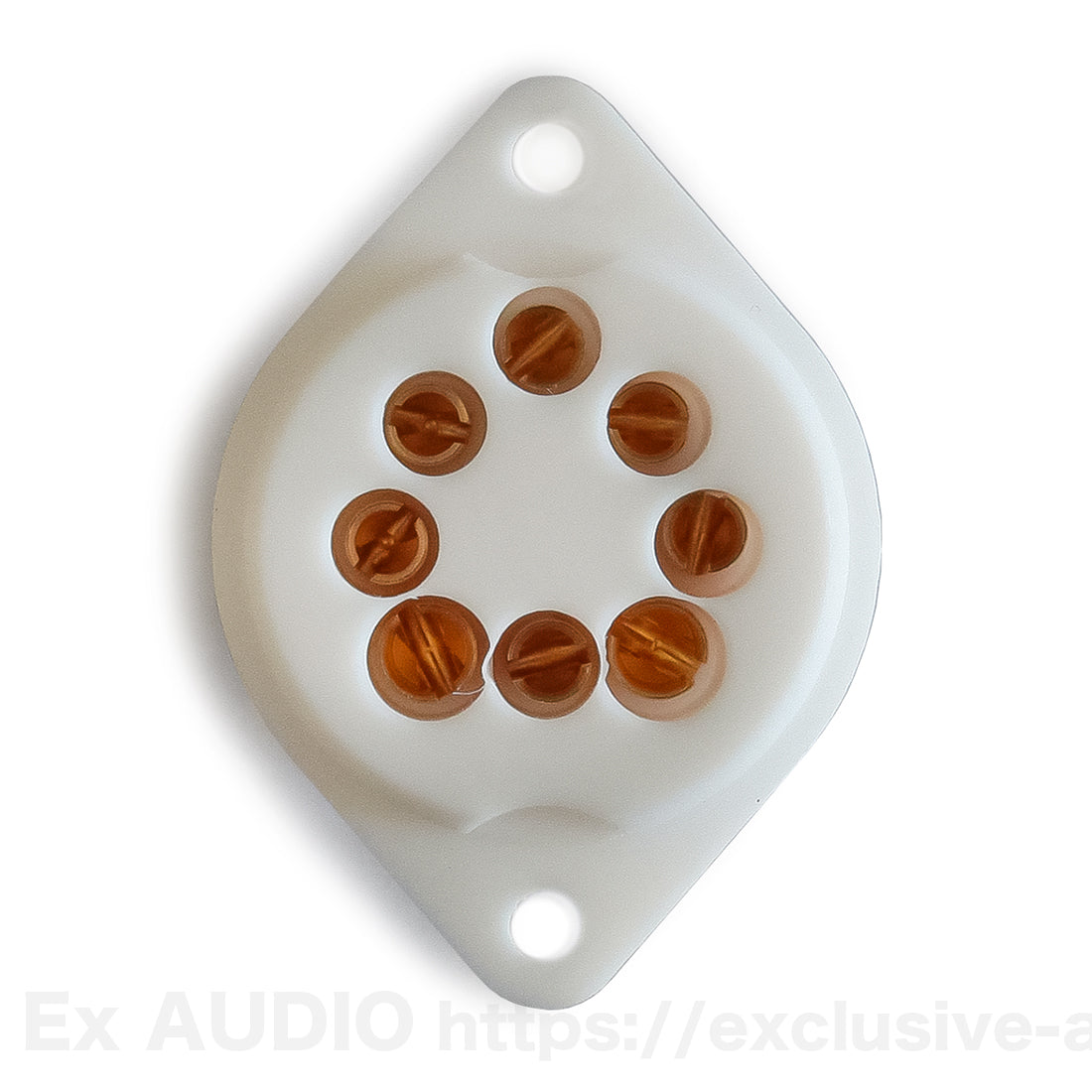

Yamamoto Sound Craft UX-UF Dual Tube Socket
Product code:Yamamoto Sound Craft UX-UF Dual Tube Socket
Could not load the receipt status
High Quality Teflon Socket
Sockets for both UX and UF type vacuum tubes
Dual-purpose design that can handle UX-4P and B4 in one

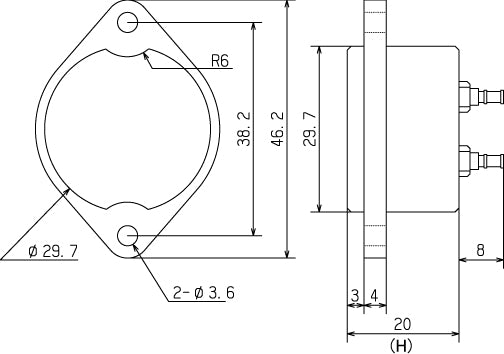

The UX-UF dual-purpose tube socket is an extremely practical socket that allows the use of vacuum tubes of the UX-4P and B4 (UF) types in common. UX system such as 300B, 2A3, 45output tubeIn addition, it is compatible with B4 series vacuum tubes such as PX4, PX25, and PX25A, allowing you to replace the 300B and PX-25 and enjoy the difference in sound. The mounting hole diameter is 30 mm φ and the screw spacing is 38.2 mm, conforming to the general UX system layout.
High-precision hold structure based on the premise of changing pipe type

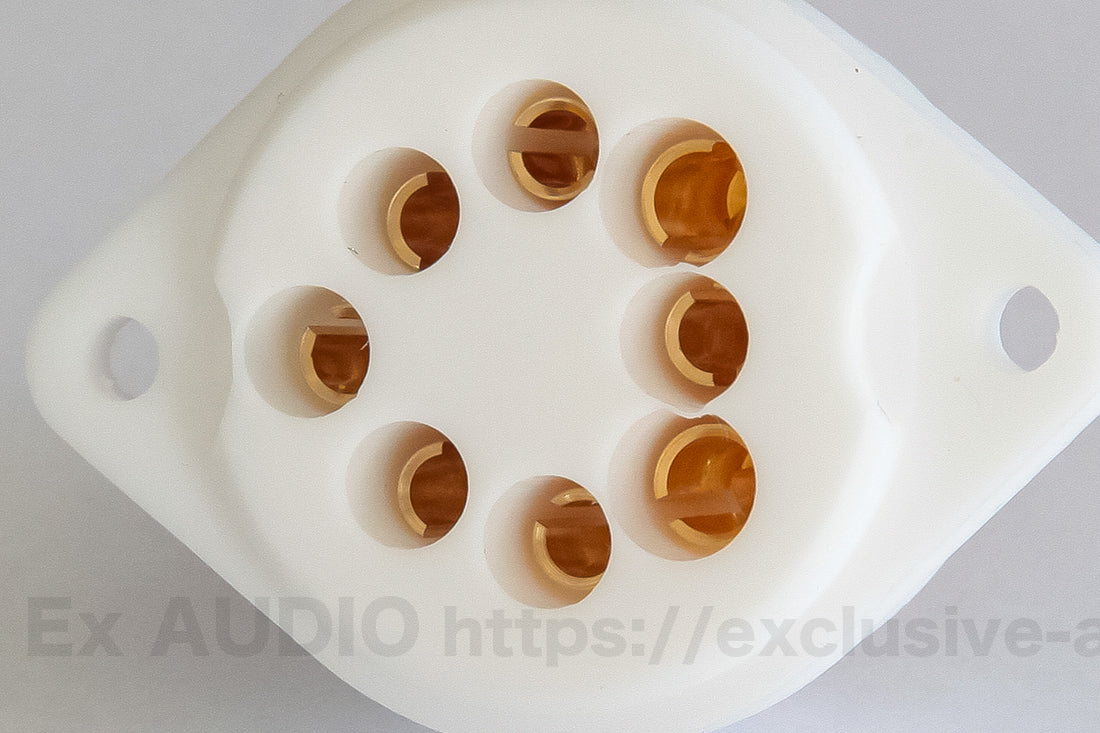

To safely use different standards of vacuum tubes, the socket body is made of fluoropolymer orCompriteIt is machined out and molded, and the round cutting pin is fixed with high precision. This prevents rattling even when the tube type is replaced, and suppresses poor contact and fluctuations in sound quality caused by vibration. Although it is designed for frequent replacement, it also ensures high stability for permanent applications.
Highly insulated body for peace of mind and long-term stability
The fluoropolymer (ethylene tetrafluoride) used in the body has extremely high electrical insulation and low dielectric constant, and maintains stable properties even at the output stage where high voltages are applied. It also has excellent heat resistance, providing reliable performance even during prolonged operation of tube amplifiers. Adopted by specificationCompriteis also a material that combines mechanical strength and acoustic stability.

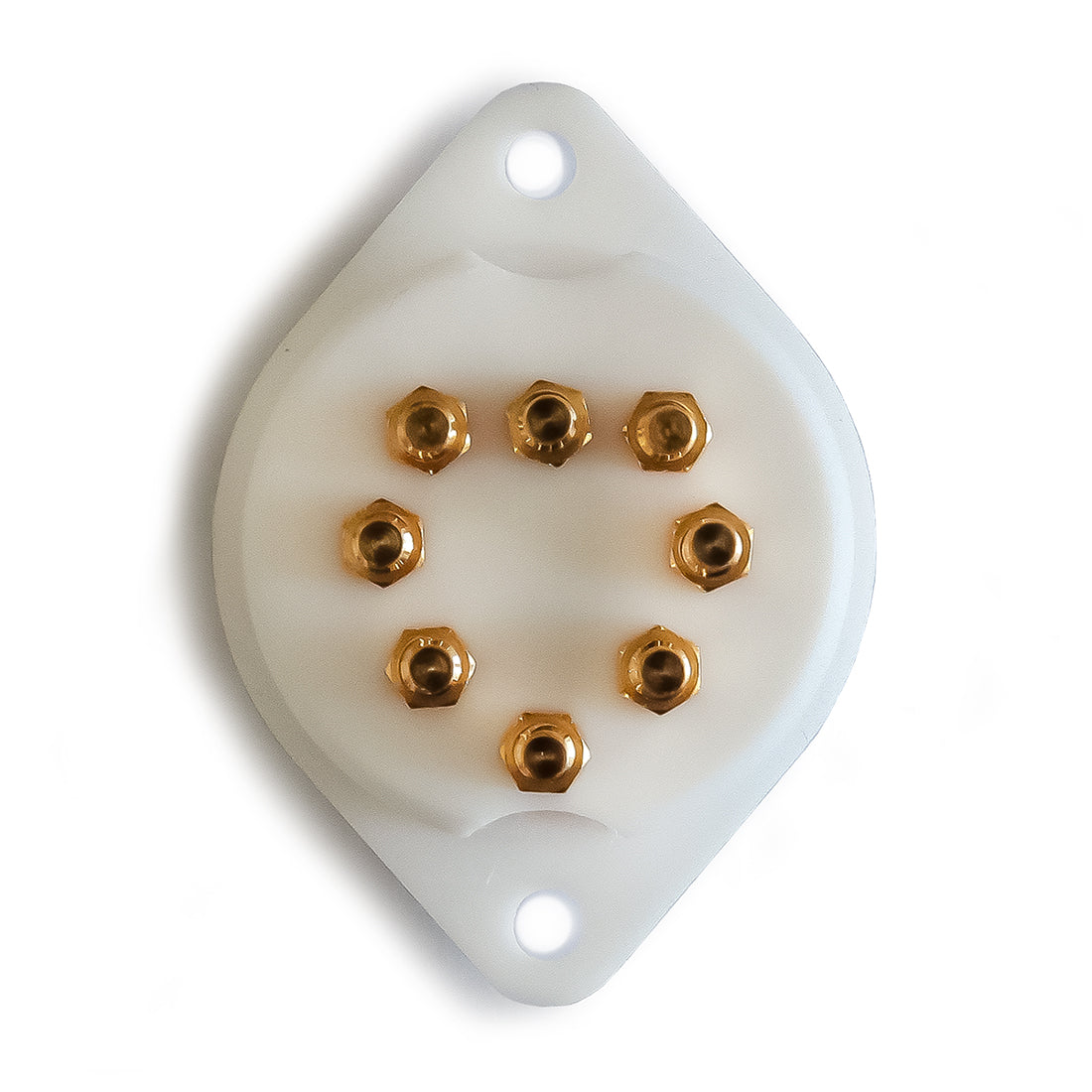

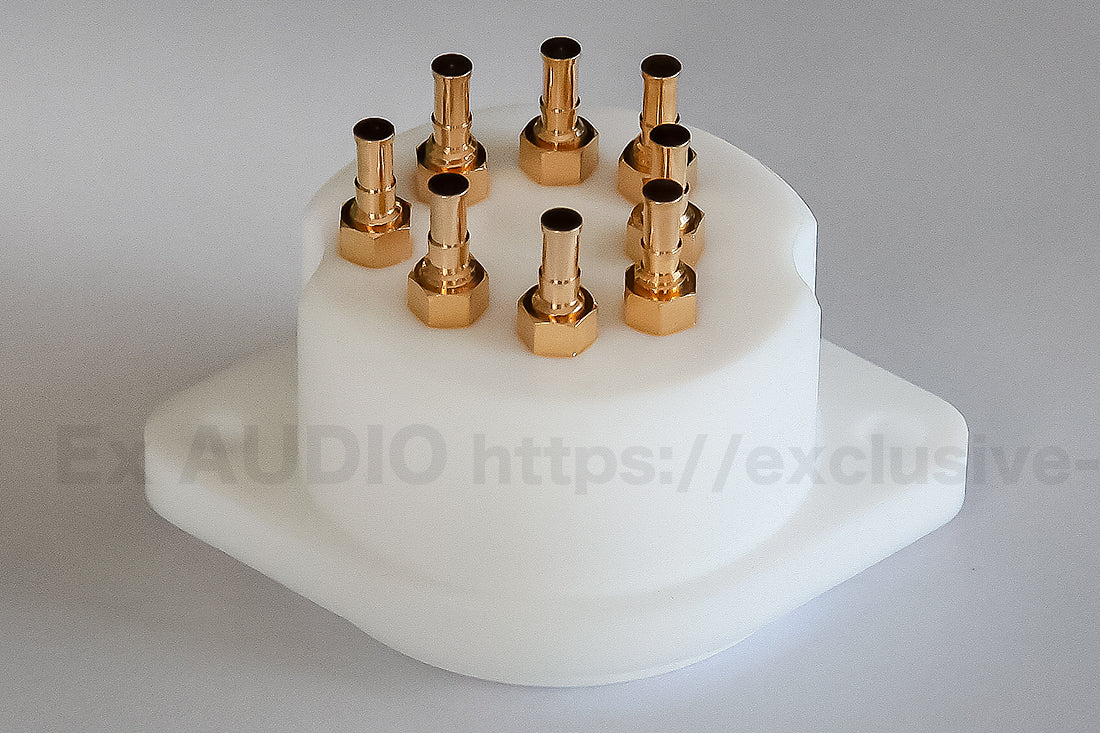

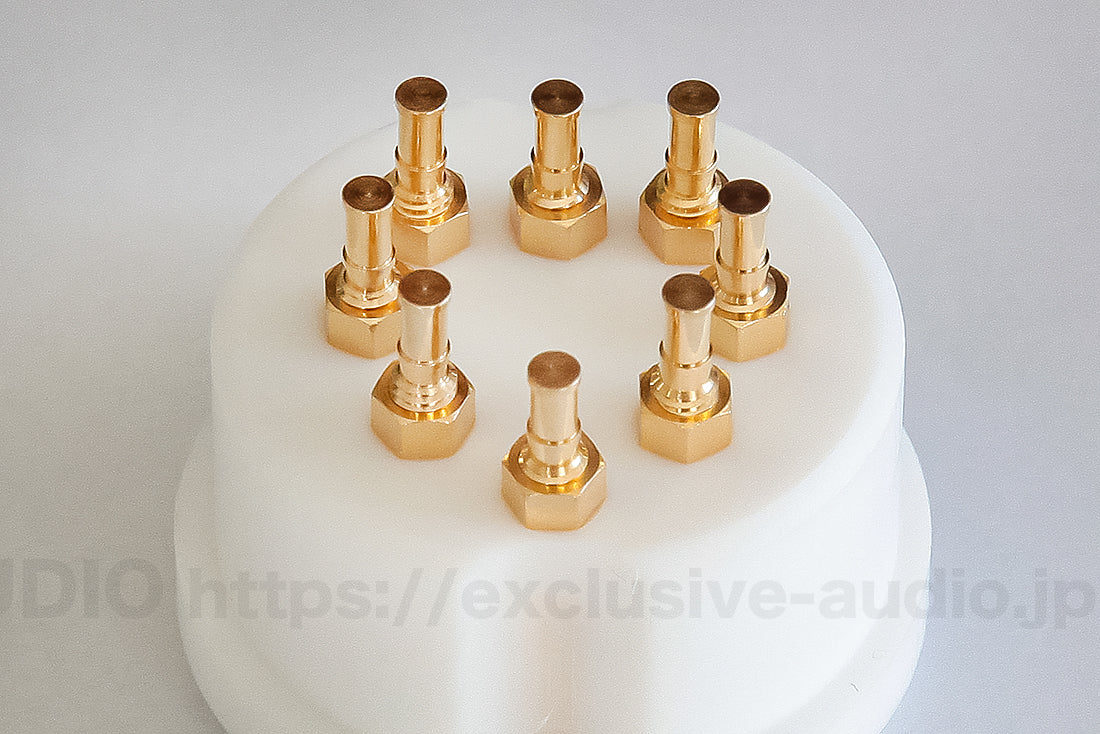

Secure contact with phosphor bronze pins and gold plating
The socket pins are made of phosphor bronze for excellent strength and springability, maintaining stable contact pressure even with long-term use. In addition, thick gold plating is applied on top of the priming treatment that eliminates magnetism, which reduces contact resistance and prevents the degradation of microsignals. Even for applications where multiple tubes are compared and auditioned, the configuration does not compromise the purity and reproducibility of the sound.
