Yamamoto Sound Craft 10-Pin Tube Socket for EL152
Product code:Yamamoto Sound Craft 10-Pin Tube Socket for EL152
Could not load the receipt status

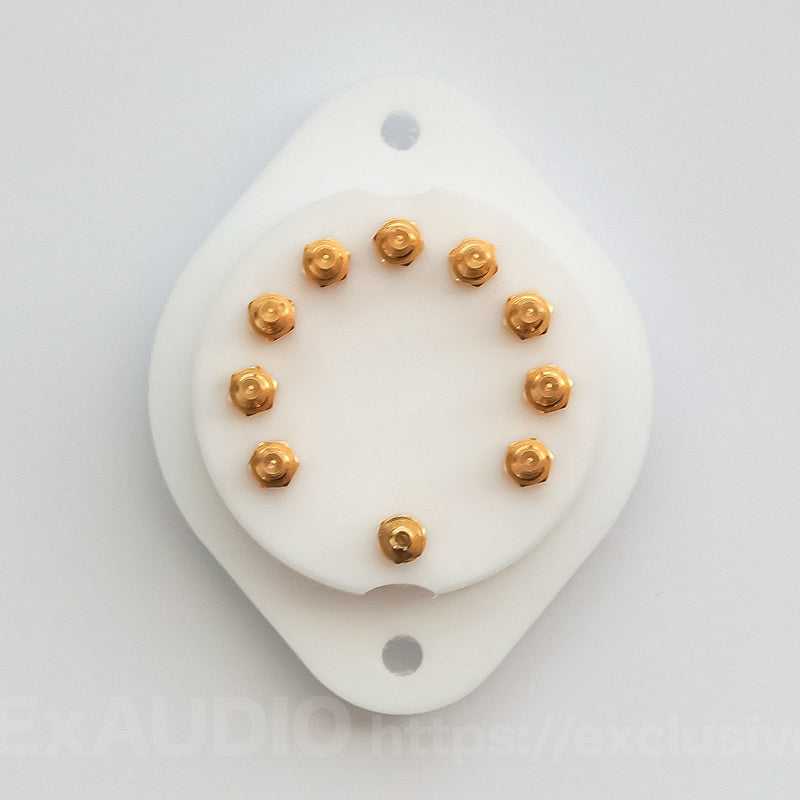

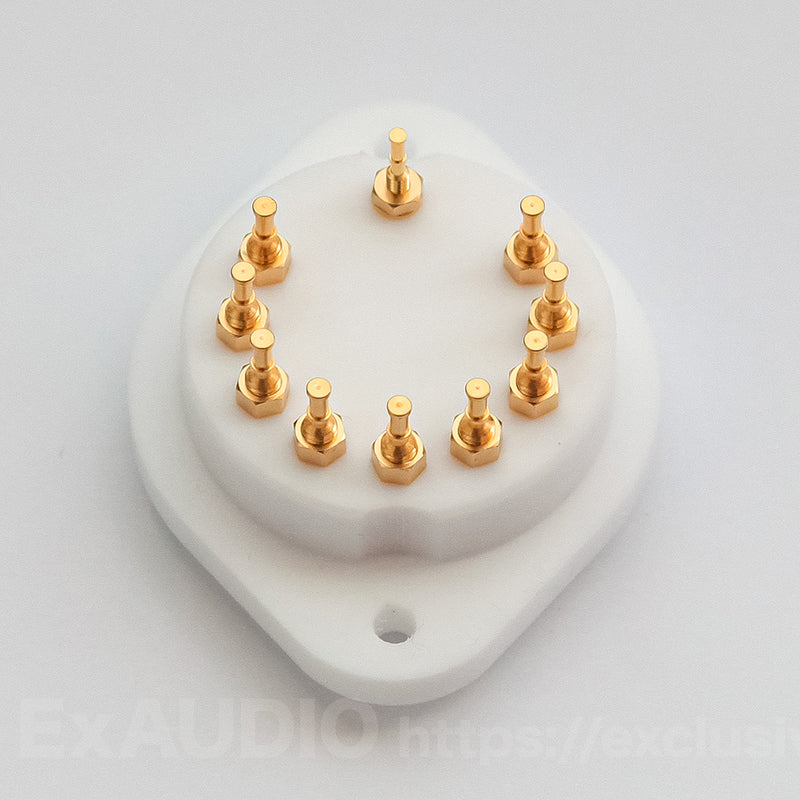

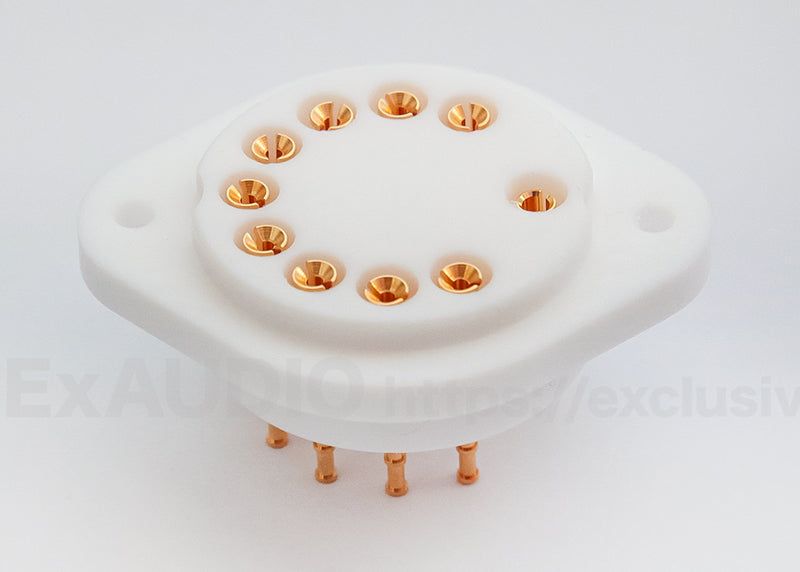

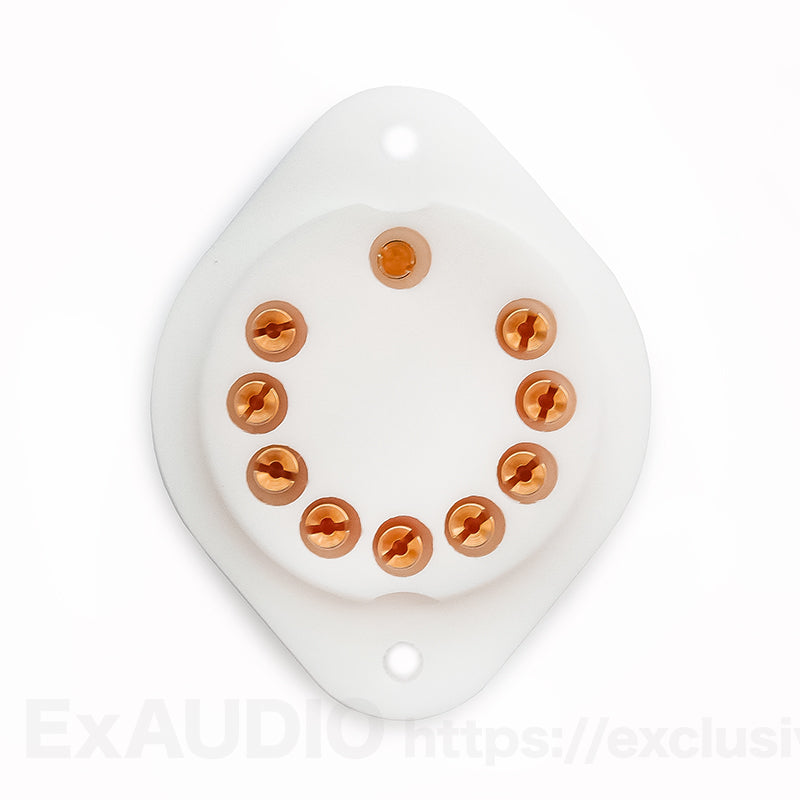

High-quality Teflon Socket
Socket compatible with EL152, such as Telefunken tubes
Compatible Tubes
EL152, FL152, EL153, etc.
Mounting hole 35φ, screw spacing 45.2mm
In the dimensional diagram, (H) is 18mm.
The original tube socket is made by machining fluororesin (or ) and fixing pins with circular machining. This ensures a secure fit without looseness, preventing sound quality degradation due to vibration. Additionally, the excellent insulation properties of fluororesin make it a key part in building tube amplifiers.CompriteDescription of Materials Used
Fluororesin:
Official name is polytetrafluoroethylene (PTFE), with the highest electrical insulation and dielectric constant among all solids. It also has excellent temperature resistance.Phenolic Resin:
CompriteWood is forcibly dried and impregnated with phenolic resin as a base material. Electrical properties are the same as Bakelite but with higher strength. It also has high heat resistance and strength, resulting in solid sound quality.

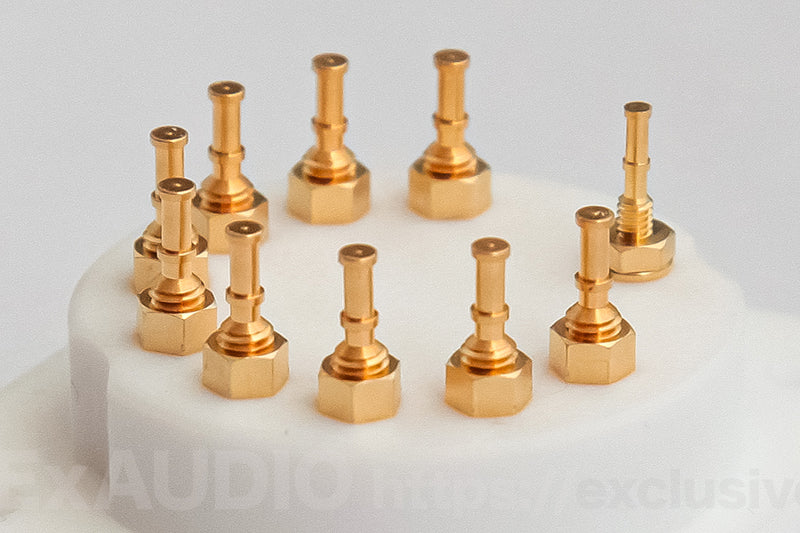

Phosphor Bronze:Used as the pin material in most tube sockets (except L series). It offers high strength, excellent springiness, and maintains stable contact.
Gold Plating:Most socket pins are plated with a thick layer of gold over a non-magnetic base material (except L series). Magnetic materials are minimized in the plating.
