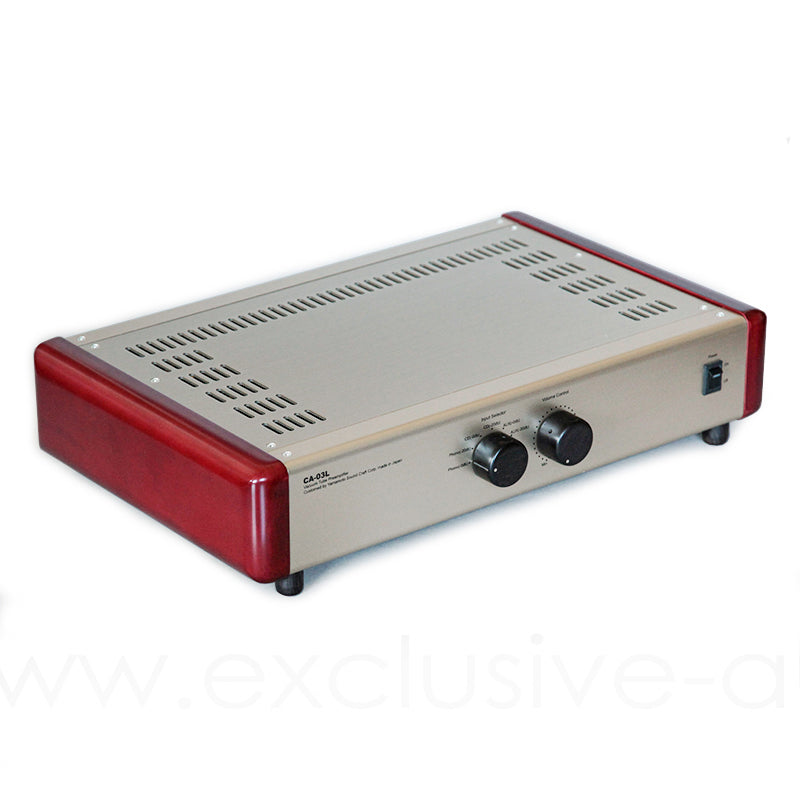

Yamamoto Sound Craft CA-03 Preamplifier with built-in vacuum tube phonoeco

Product code: ca-03-1

Yamamoto Sound Craft CA-03 Preamplifier with built-in vacuum tube phonoeco

Regular price ¥550,800 円
Regular price Sale price ¥550,800 円
Our special price sold out
tax included. Shipping feeis calculated at checkout.

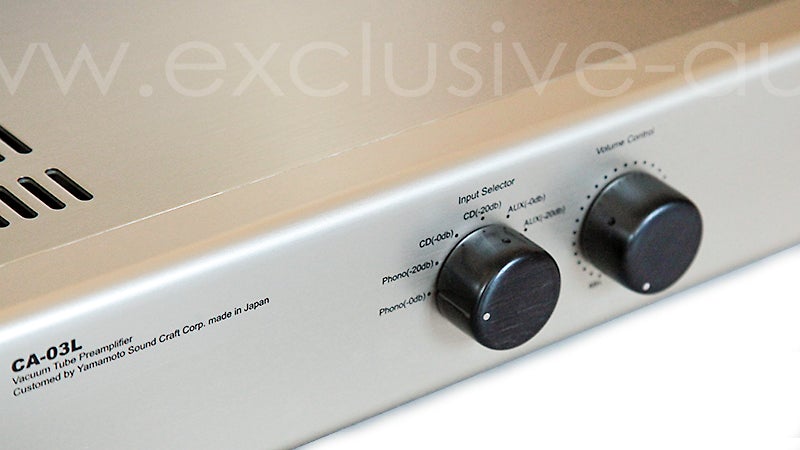

Volume Type
Power supply voltage
View details
This is a made-to-order product. The estimated delivery time is around 5-6 months.

CR-type equalizer circuit adopted

High gain type equalizer amplifier

Description


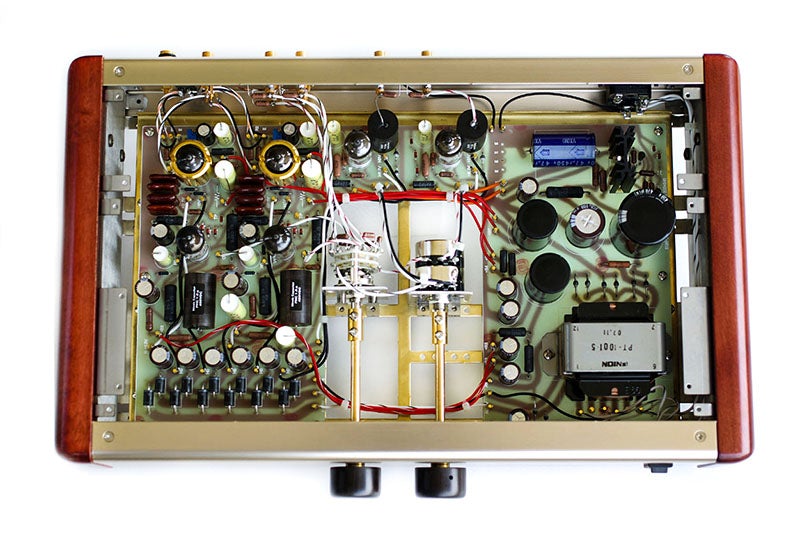

The power supply ripple filter is divided into each stage separately from the rectifier circuit, and each stage is supplied from an independent power source. The rectifier circuit has been made into double-wave rectification to improve regulation. The heater of the vacuum tube Telefunken 6AK5W was ignited with independent rectifier circuits for each of the six vacuum tubes, eliminating the interference of each vacuum tube. The amplifier circuit has achieved both a large gain and a reduction in noise by setting the operating point at the optimum point.


The equalizer amplifier has a high gain type, with a gain of 58dB at 1kHz. The gain of a normal equalizer amplifier is around 34dB, so it is set to be 24dB larger. By reducing the noise to 2.3mV, the signal-to-noise ratio was achieved to 110dB. The company's equalizer amplifiers are extremely simple, and are extremely simple to get gains from just two vacuum tubes, so there is no lack of information. Although it has a CR-type circuit configuration, it achieves a fairly good signal-to-noise ratio. The maximum output is approximately 28V, so it can be used not only for MC cartridges, but also for large output MM cartridges and high output MC cartridges. The company's MC cartridges YC-03S and YC-03M (output is 0.25mV) are directly connected to the company to be used without using a booster transformer. The sound of the MC cartridge, which does not pass through the boost transformer, is fresh and the amount of information is greatly improved. The optimal input impedance of the equalizer section of an amplifier such as the CA-03 is 100Ω.

《Line amplifier section》

Spec
Used vacuum tube Telefunken 6AK5W x6
Maximum output 8V
Frequency characteristics 10-150kHz/-0.5dB
Output impedance 1.6kΩ
Line amplifier section gain 14dB (approximately 5 times)
Residual noise 0.13mV
Signal/N ratio 92dB

{Equalizer amplifier section}

Maximum output 28V
Frequency characteristics 30-15kHz/+-0.5dB

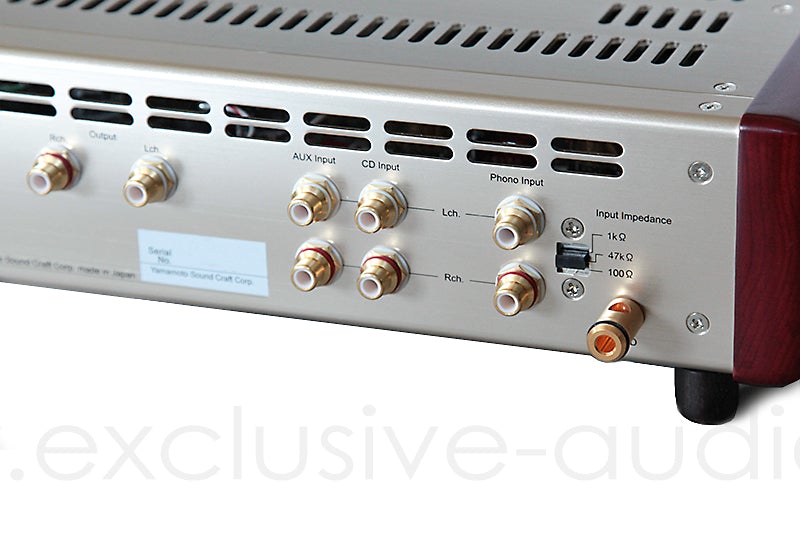

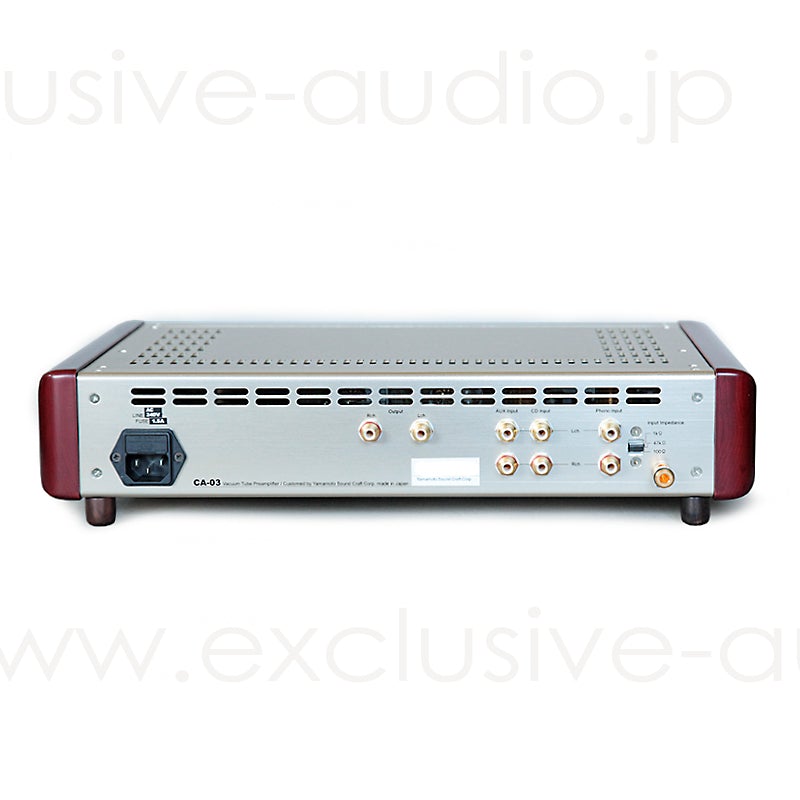

Input impedance 47kΩ, 1kΩ, 100Ω
Output impedance 4.8kΩ
Amplification rate 58dB/1kHz
Residual noise 2.3mV
Signal/N ratio 110dB
size 420(W)290(D)94(H)mm
weight 6.3kg
