Transformer for SUH2+ headphones
Description
The TR2 is a transformer developed for use with TAKET headphones.

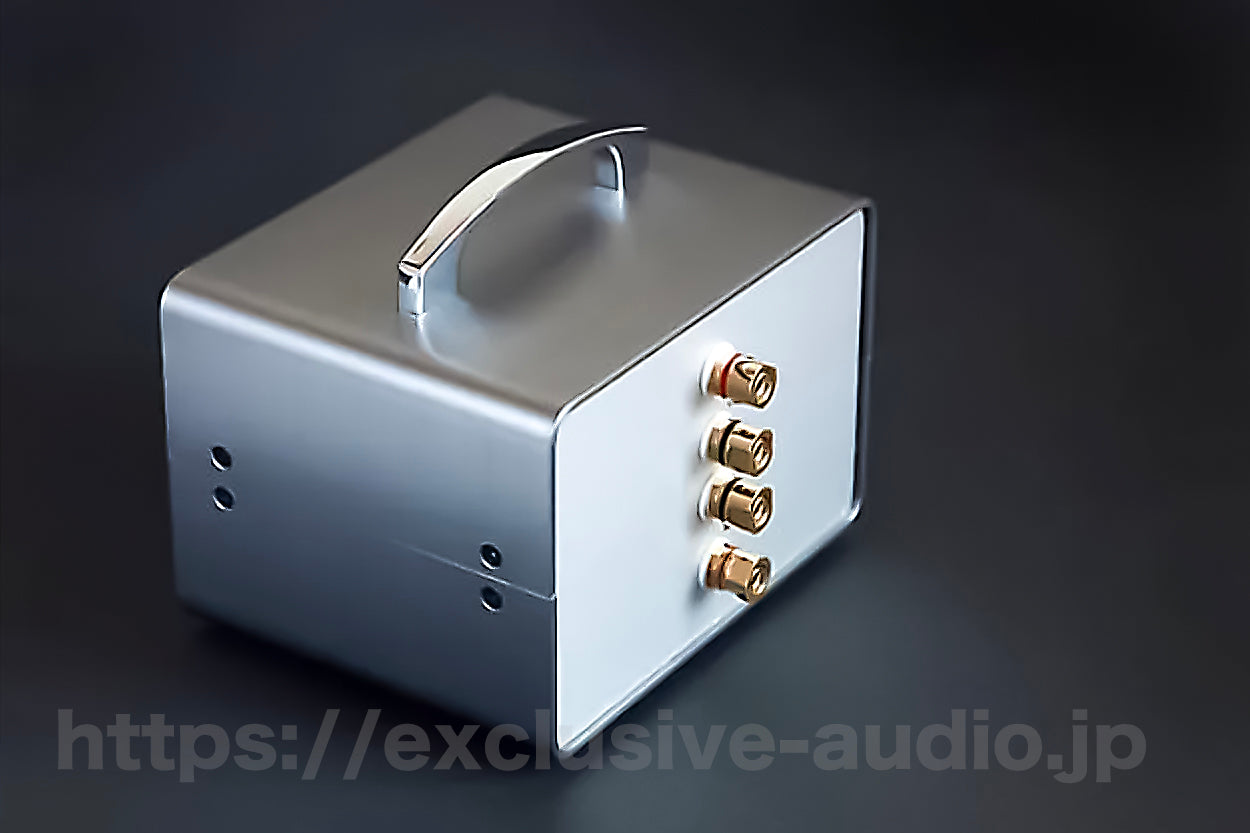

The connection is made by connecting the amplifier's speaker outputs to the TR2's The connection is made by connecting the amplifier's speaker outputs to the TR2's inputs.

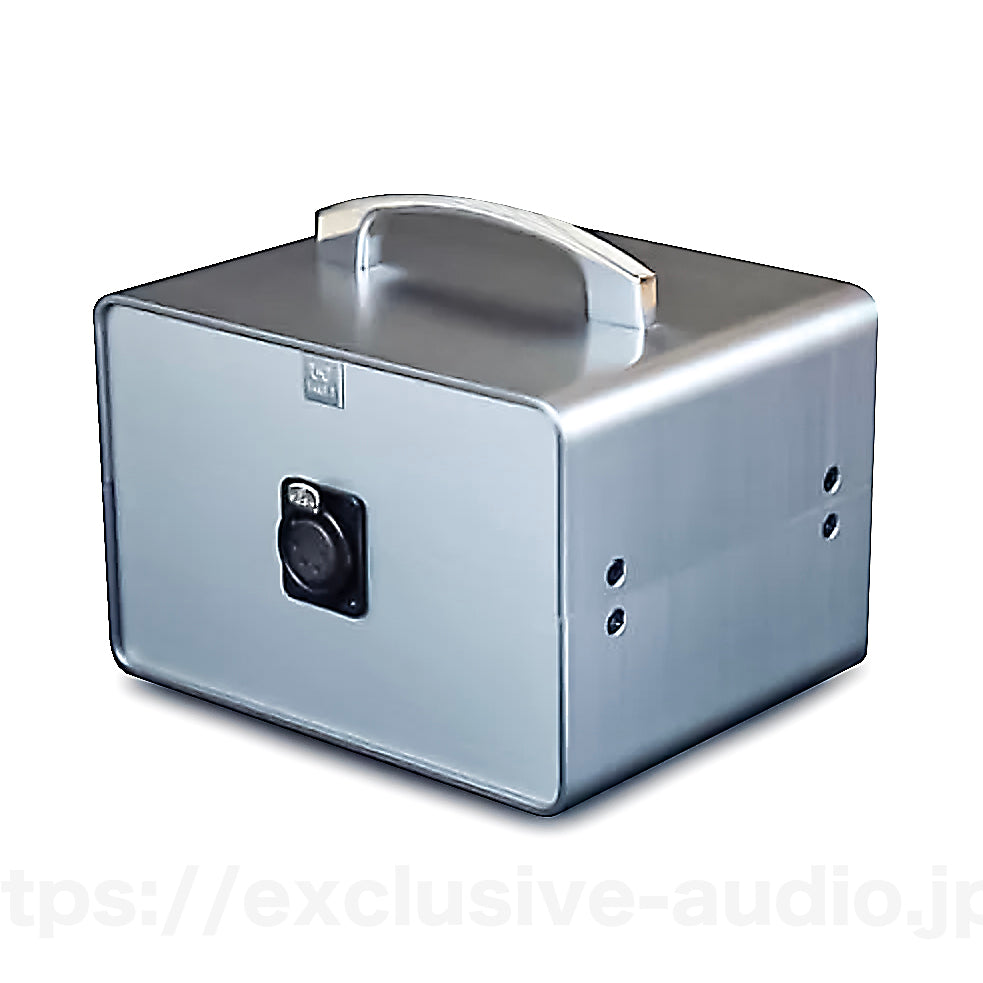

Connect the 4-pin headphone cable to the gold-plated pin XLR connector on the front.
The connection is made by connecting the amplifier's speaker outputs to the TR2's inputs.
Input impedance |
12~16 ohms |
---|---|
Output Impedance | 7k ohms |
Maximum input power |
10W + 10W |
Maximum Output voltage | 300V |
Input inductance | 0.02H |
Output inductance |
15H |
Output side withstand voltage | 1500V |
Dimensions | W150 x D120 x H110 mm(excluded terminals and handle) |
Weight | 3.6kg |
