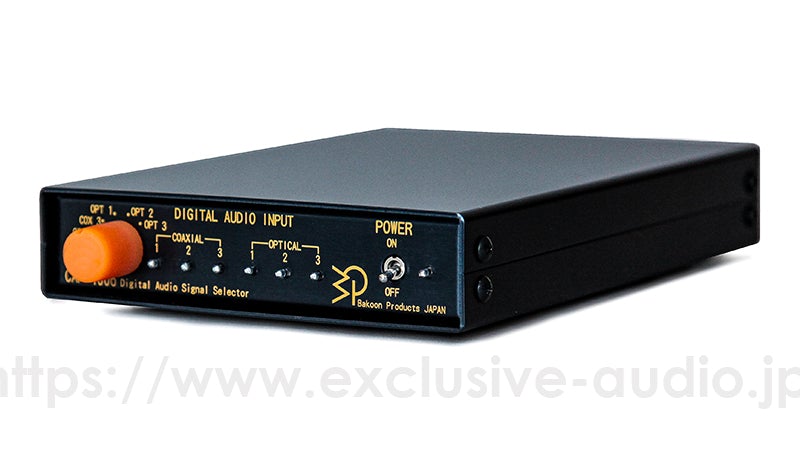

Bakoon Products SCL CAP-1006 Digital Signal Selector

Bakun Products has created the CAP series, which produces a high-quality music life in a size that fits perfectly in a narrow space. In order to play all the music information even at low volume in a studio room that the neighbors are concerned about, Bakun Products' proud SATRI circuit technology is generously introduced.

It also receives a signal of 192 KHzFs with a margin

Most devices such as CD players, DVD players, TVs, PCs, and mobile players are designed to output digital signals.
These signals are selected to supply the digital signal to the DAC.

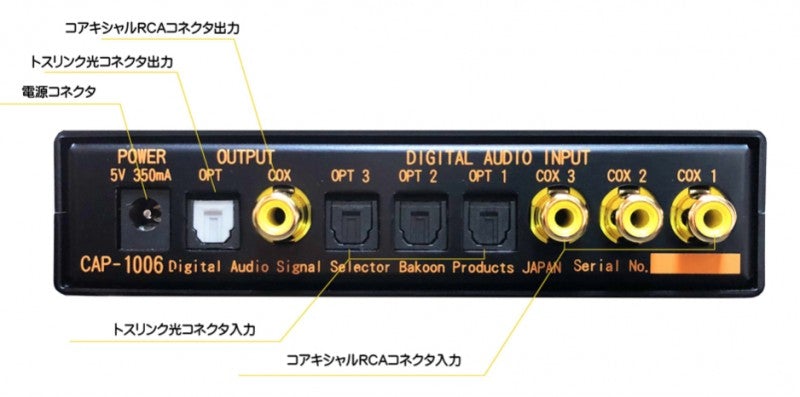

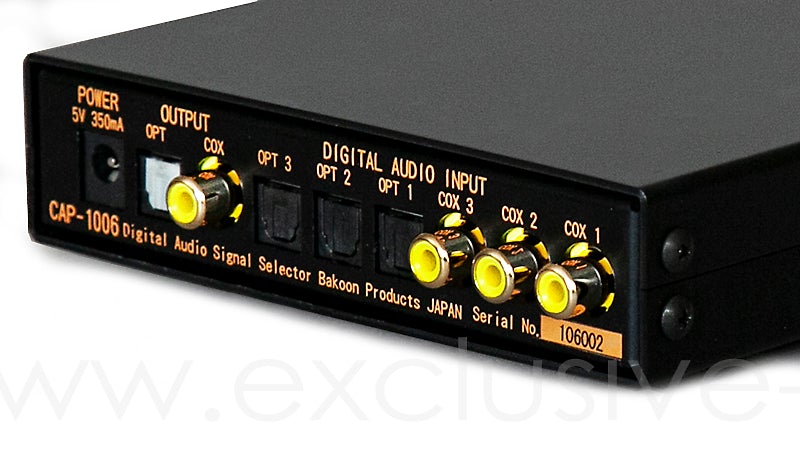

There are 6 inputs: 3 RCA coaxial inputs and 3 optical toslinks.
The coaxial inputs use a high-speed pulse transformer and a high-speed line receiver.

The receiver of the optical toslink uses a high-speed type in the 30MHz band, so it can receive a signal of 192KHzFs with a margin.
The output is coaxial and optical output, and a high-speed line receiver and a high-speed pulse transformer are used for coaxial.
Since the internal logic circuit also uses high-speed logic, signals that rise slowly can be converted to high-speed signals by passing through this unit, and can be converted into signals with less jitter.

The power supply is 5V, the same as USB, so you can use a USB power adapter or mobile battery.
The products of the CAP series have the ability to be used at the high end.

input	COAXIAL x3, TOS-LINK x3
output	COAXIAL x1, TOS-LINK x1
size	W130 x H30x D180mm
weight	Approx. 420g
power	5V350mA DC

*Bakun Products will gradually change its logo and name to SCL (SATRI Circuit Laboratory). Thank you for your understanding.

Dramatic sound quality improvement with the addition of CAP-1006
A mobile battery is used as a power source to cut off common mode noise. First of all, the sound using the CAP-1005 alone is so powerful and relaxed that it is difficult to imagine from the small and lightweight construction, the grain quality of the high frequencies is good, and the texture of the voice and instruments is natural and cost-effective. However, if you add the CAP-1006 in front of this unit, it seems to have a jitter reduction effect, and the sound quality changes drastically. As if the veil has been lifted, the outlook of the sound field has improved, the auditory noise has been lowered, and the weak sounds such as breathing are clearly clear. The transparency is improved and the texture becomes more natural. In addition, the sense of depth and spaciousness of the sound field is expanded, making it much more vivid, and the instantaneous power and braking power are enhanced, resulting in a tremendously energetic sound. The CAP-1006 not only has the function of a digital selector, but also has the function of a jitter reducer. Even when using the USC-1001 to play a NAS high-resolution sound source, the CAP-1005 is recommended to be paired with the CAP-1006 because the addition of the CAP-1006 afterwards resulted in a dramatically more energetic and high-resolution sound.
*MJ Magazine
Depict a dense sound image
It can be said that this unit is characterized by excellent sound transparency and depiction of high-density sound images. As for the tone, the high frequencies are clear, and the mid and low frequencies are warm and voluminous. Therefore, in the jazz trio played, there is no turbidity in the sound of the piano, and the sound grain is really beautiful. The afterglow of the recording spreads beautifully in the church, where it was recorded. The sound of the drums is also vivid, and the bass makes the feeling of playing with the fingers and the sound of the body clear. It is also characterized by the fact that the sound is beautifully maintained until the moment when the sound disappears, and it is presumed that this is because the DAC and the analog circuit (low-pass filter) in the subsequent stage are battery-powered. It can be said that it has excellent linearity of D/A conversion. In addition, I played a song with a female chorus and strings, and I was able to enjoy the rich overtones that are closer to DSD than PCM. This unit does not care about the playback genre, but the playback of classical music was particularly attractive. In addition, it seemed that the effect of the SATRI amplifier module was also demonstrated in this unit.
*MJ Magazine
CD PLAYBACK: CANTATE DOMINO IS CHURCH MUSIC WITH ORGAN AND CHORUS. The female chorus sounds well separated, and there is no bothersome or unnecessary incidental sound even when the chorus overlaps. The pipe organ sounds solemn and rich in the church. The Jubilation of JAZZ has a warm trombone-like feel, and you can even see the difference in texture between the two trombones. The bass has both elasticity and tightness, and the piano has a good transient characteristic.
TV audio (48kHz): Saint-Saëns Symphony No. 3 is a complete orchestra with each instrument separated and crisp. And even Tutti does not lose the sound. The powerful timpani sound is pleasant. The sound of the heavy organ is also pleasant. In Beethoven's Ninth Chorus, the voices of the four singers are well separated. In the large chorus, there is no disturbance or unpleasant muddy incidental sounds, which is good.
BD playback (96kHz, 24bit): Seiji Ozawa conducts, Berlin Philharmonic performance, Tchaikovsky Symphony No. 6 Melancholy, the silky violin can be heard comfortably. The power of the orchestra's fortissimo is overwhelming and impressive.
As for the sound tendency of the CAP-1006, it can be evaluated as a clear sound with good separation of each sound, and a high resolution sound that does not make you feel annoyed. I feel that the CAP-1006 has high resolution and good sound for both CD and TV audio. I think it is a product that I can confidently recommend as a digital voice selector with good sound.
Bakoonproducts.facebook

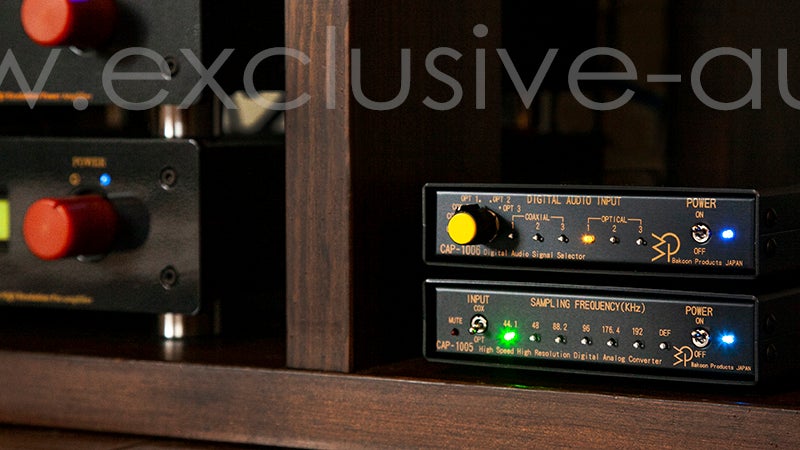

The new DAC, CAP-1005, and digital signal selector CAP-1006 are being tested at the audio dojo in Nishihara Village. It is highly regarded for having both strength and delicacy. When used in combination with the CAP-1006, the sound becomes clearer and the amount of information increases. Again, we confirmed that attaching CAP-1006 increases the amount of information. After all, the CAP-1006 seems to work as a jitter canceller.
