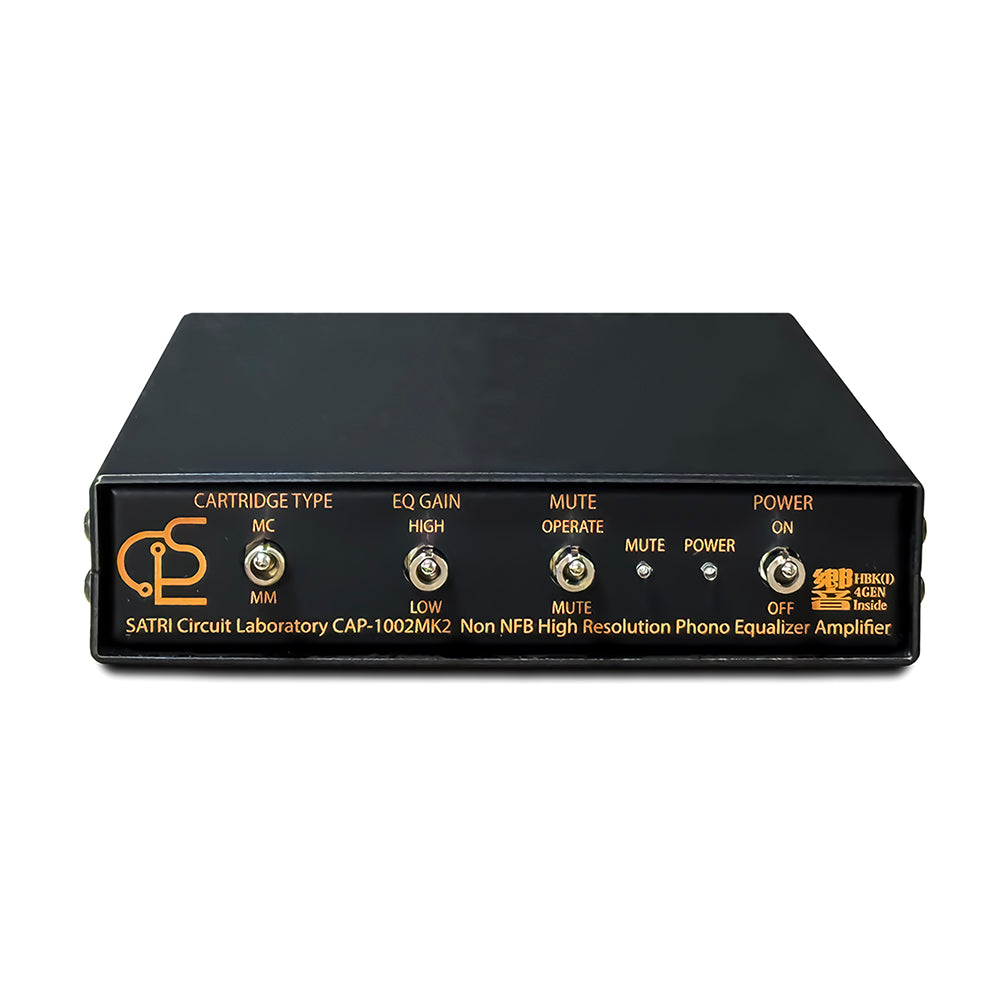

Bakoon Products SCL CAP-1002 Small Phono Equalizer

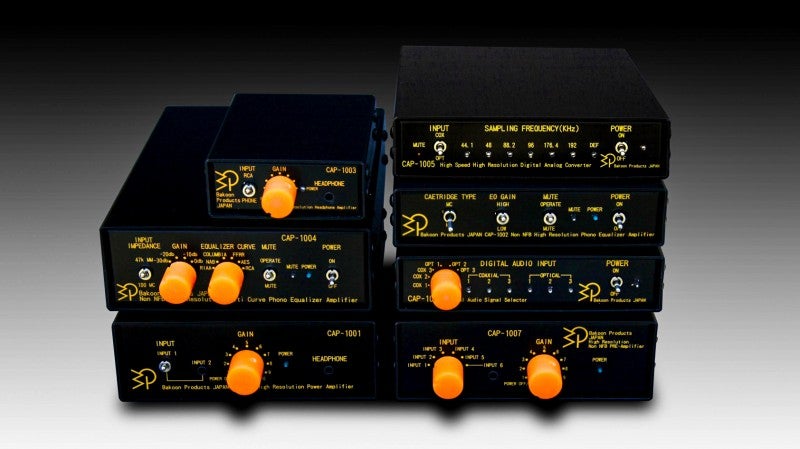

Bakoon ProductsThe CAP series, which produces high-quality music life with just-fit size, was born in a narrow space.
CAP-1002 want as many people as possible to know the good of analog recordsBakoon Productsis developed.

Analog signals with infinite resolution can reproduce infinite information by using an analog equalizer. CAP-1002 was developed so that the original sound of analog records can be easily played.
It is a no-return amplifier, but since the amplification level itself becomes a RIAA curve and amplifies, clips etc. do not occur. By using a MC cartridge with a large output current, it can obtain a large S/N ratio that could not be realized with conventional equalizer amplifiers, so it plays clear with less noise.

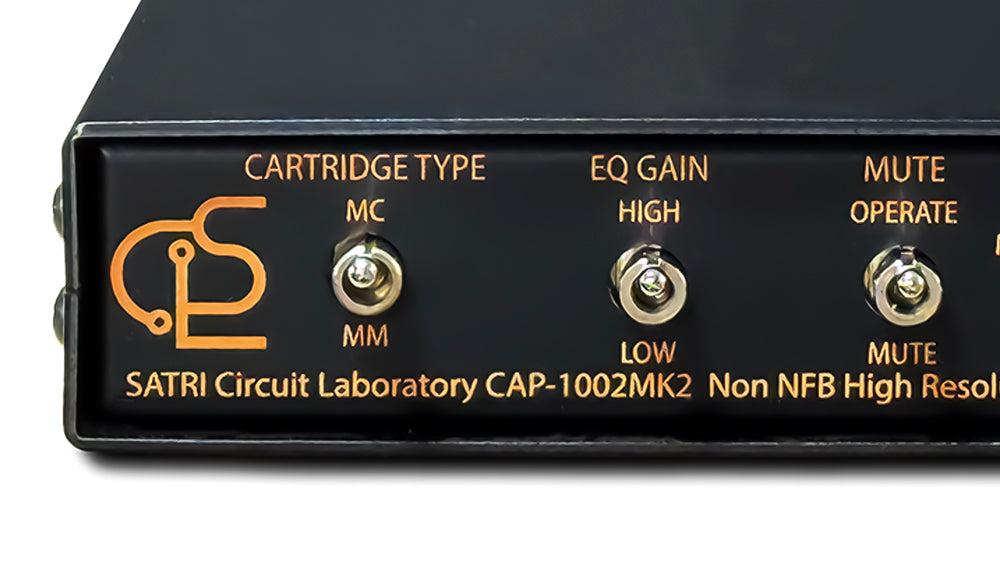

CAP-1002 not only MM cartridges but also MC cartridges with small output voltageBakoon ProductsBy using the current mode of the SATRI circuit, it is possible to get the maximum information without noise. By selecting the gain of the equalizer in two stages, according to the output of your record cartridge, the small output cartridge is switched to High, and the large output cartridge is switched to Low to play the record in optimum condition. Since CAP-1002 switches the equalizer element itself, there is no deterioration of S/N ratio by switching gain.

Shut out noise with battery power

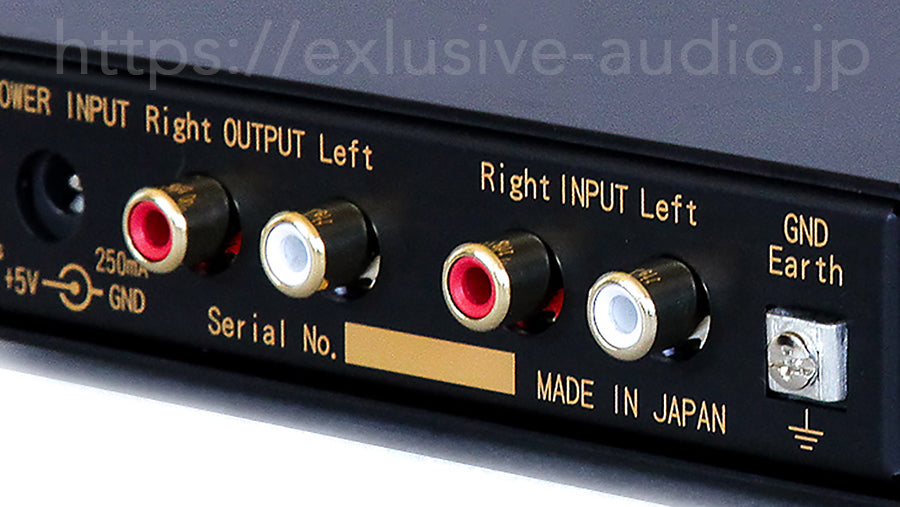

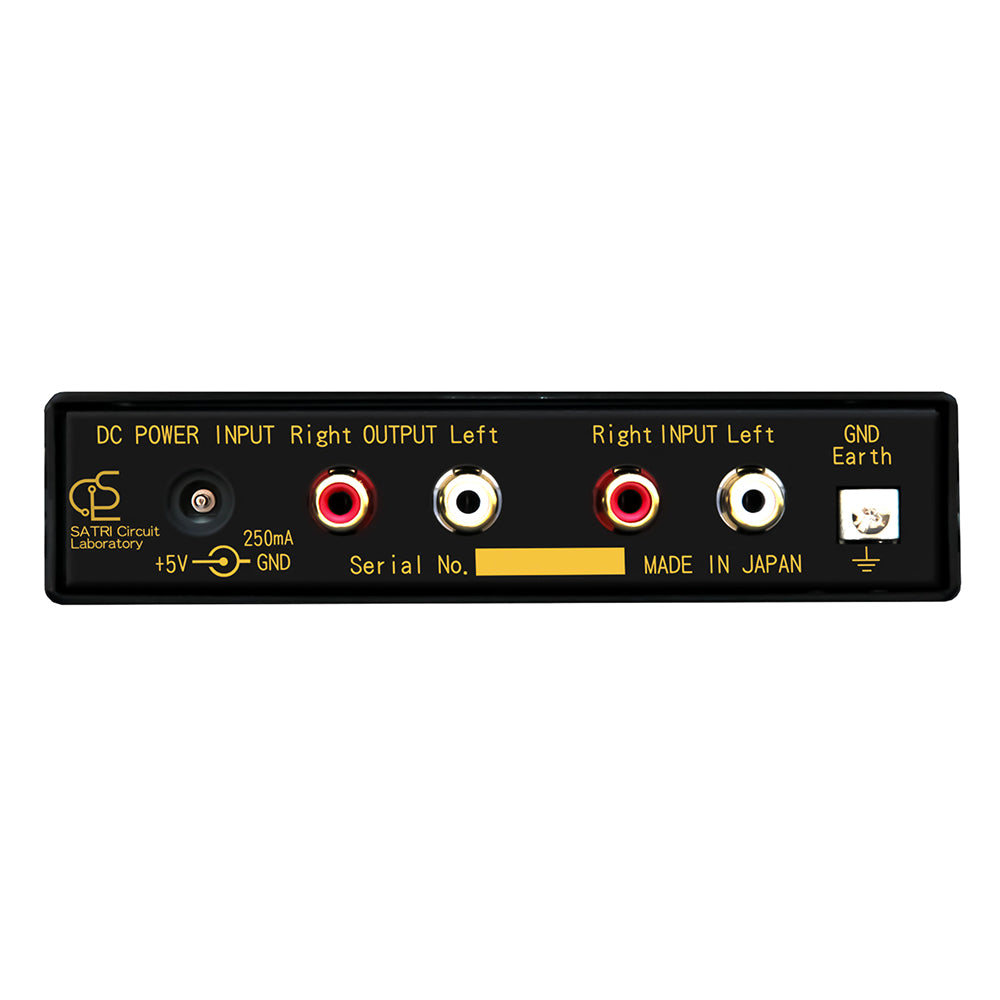

The power supply can be used with a mobile USB charger or mobile battery. The current consumption is 5V250mA, so it can be used for 40 hours with a 10AH battery. Using the mobile battery does not affect noise, so CAP-1002 can operate at its best.

Maximum output	8V (1% distortion)
Distortion (1KHz)	2V:0.07%
S/N ratio	-132.5dB(GAIN Low),-133dB(GAIN High)
Frequency Characteristics	20Hz~50KHz
RIAA Error	±0.3dB
Dimensions	W130 x H30x D180mm
Weight	420g
Power Supply	5V250mA DC

*Bakoon ProductsThe logo and name will be changed to SCL (SATRI Circuit Laboratory). Thank you for your understanding.

The design of the CAP-1002 is like an impressive front panel with an array of metal switches reflected by chrome, and the appearance of a thin casing as if the extravagant meat was shaved off, it is an exquisite atmosphere in the series. However, it is necessary and fully functional to enjoy the world of analog records. As with other CAP series, it is a battery power supply, so I am honestly happy that there is no trouble with the noise unique to that turntable. Moreover, since it is a USB supply, the battery is now available anywhere. The playback sound that I care about is smooth and tone like a higher model is not extremely fine, but it is a better impression as a person who likes jazz and vocals because there is a push out for that minute. Even if you hang an old 1960s record, you can listen to a beautiful singing voice with transparency without any noise. 。 No cost performance.
