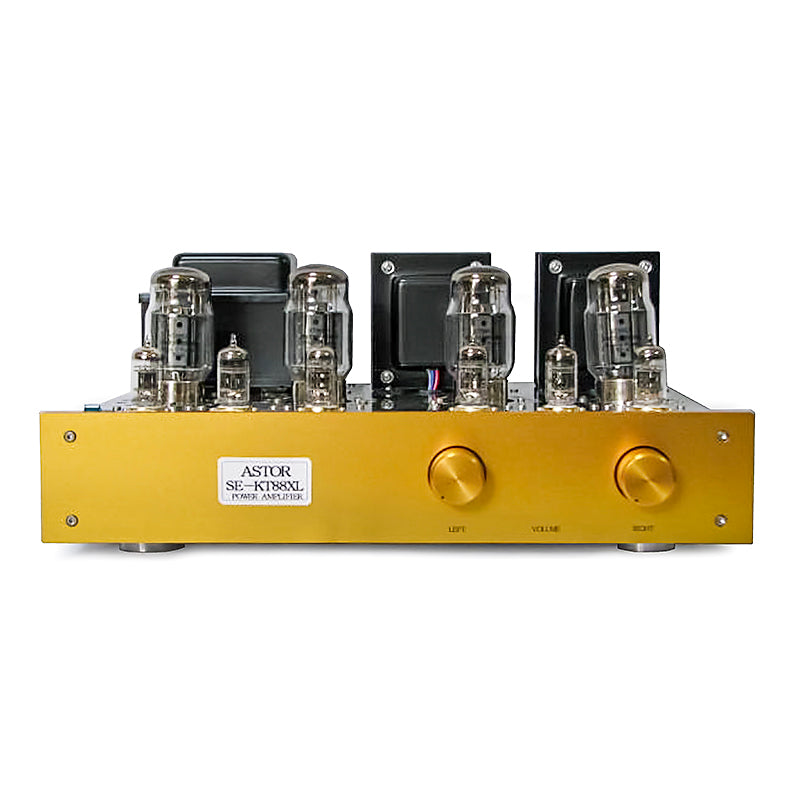

ASTOR SE-KT88XL Vacuum Tube Push-Pull Power Amplifier

Product code: se88xl-s

ASTOR SE-KT88XL Vacuum Tube Push-Pull Power Amplifier

Regular price ¥385,000 円
Regular price ¥770,000 円 Sale price ¥385,000 円
Our special price sold out
Tax included. Shipping Chargesis calculated at checkout.
Power supply voltage
FRONT PANEL
Show details
CAMPAIGN SALE

Limited quantity. Due to the model change, we are offering it at a special price for chassis stock disposal! Don't miss this opportunity! All transformers used are made by Astro Electronics.

It will be a made-to-order product. The estimated delivery time is around 2~3 months.

A variety of output tubes can be used.

Robust and beautiful mirror-finished chassis

Description

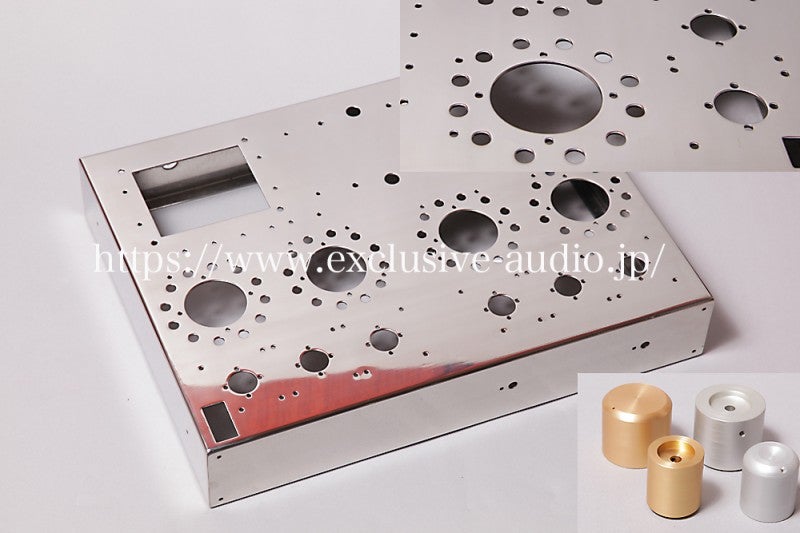

The chassis is a 2mm thick 18-18 stainless steel mirror finish. The internal mounting parts include a chassis made of 1.5~2mm thick 18-18 stainless steel mirror finish and 2mm thick oxygen-free copper material. This sturdy and beautiful mirror-finished casing is remarkably effective in anti-vibration and noise countermeasures. The heat dissipation is also solid, so there is no problem at all even if you use it for a long time even though it is a tube amplifier.

All transformers used are made by Astro Electronics, which is of the same quality or higher than that of Kanno Electric. Astro Electronics' original transformer is capable of reproducing excellent high-quality sound with a more natural spread and extension in the low frequencies.

By self-biasing, it is possible to enjoy a variety of sounds by freely changing the output tube of the same system. The self-biased capacitor used by the company uses an order of magnitude more capacitance than the capacitor used by general manufacturers. As a result, even when the volume is turned down, the sound is not lost and is expressed firmly.

Spec
Vacuum tubes used KT88 x4, 12AX7x2, 12AU7x4
Transformer used TRX-300M x1, FP-60-W8 x2, L-2-300M x1
output 25W x 25W
UL Connection Self-bias
Frequency response 10Hz~60kHz
Residual noise 1 mm V or less/1 W
Distortion 0.036% / 1W
Input impedance 100kΩ
size Approx. W450xH200xD400mm
weight Approx. 24kg
Attention

All transformers used are made by Astro Electronics, which is of the same quality or higher than that of Kanno Electric. There may be slight changes in specifications. Thank you for your understanding.
