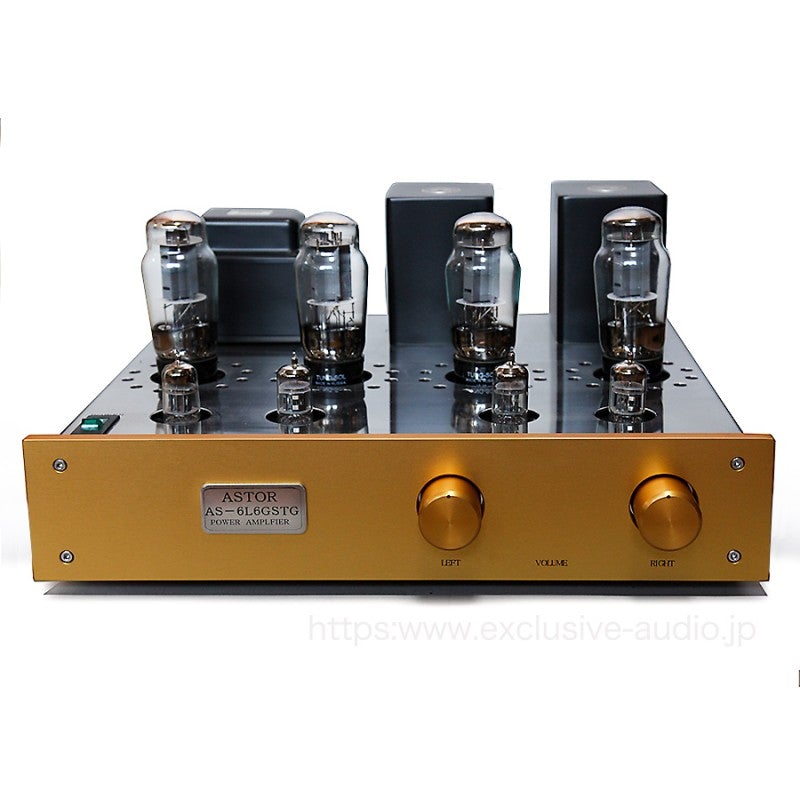

ASTOR AS-6L6GSTG Vacuum Tube Push-Pull Power Amplifier

Product code: 6L6GSTG-1

ASTOR AS-6L6GSTG Vacuum Tube Push-Pull Power Amplifier

Regular price ¥494,000 円
Regular price ¥988,960 円 Sale price ¥494,000 円
Our special price sold out
Tax included. Shipping Chargesis calculated at checkout.
FRONT PANEL
Power supply voltage
Output tube
Show details
CAMPAIGN SALE

Limited quantity. Due to the model change, we are offering it at a special price for chassis stock disposal! Don't miss this opportunity! All transformers used are made by Astro Electronics.

It will be a made-to-order product. The estimated delivery time will be around 3 months.

Powerful, pure sound quality and information

More transparency, further improvement of sound quality

Description

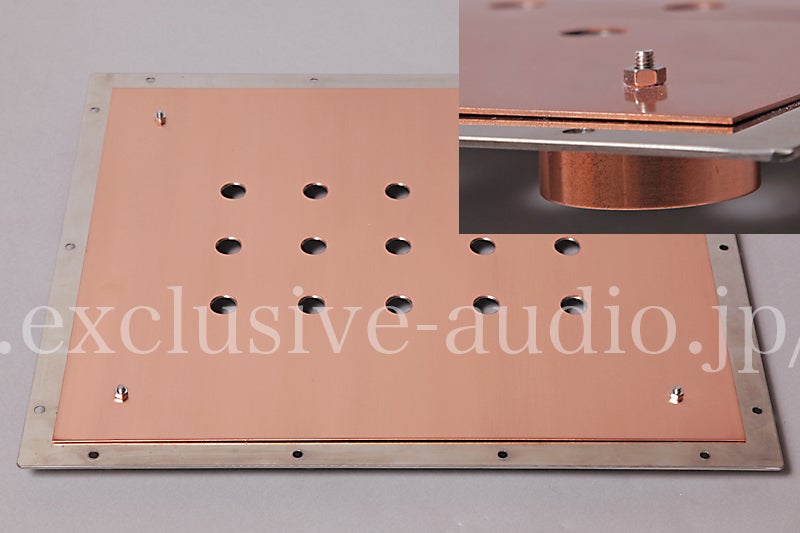

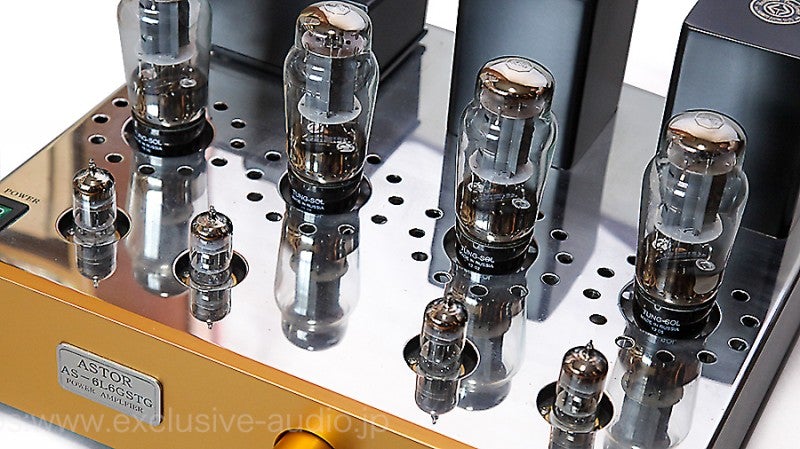

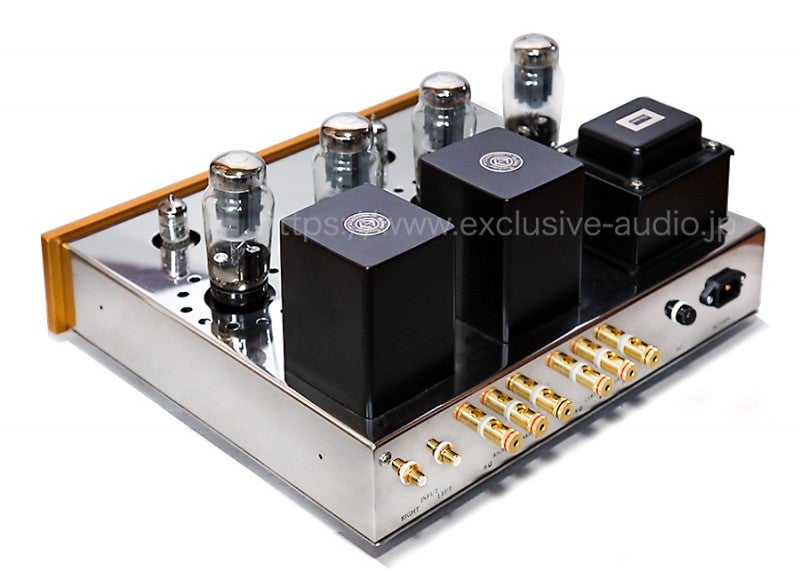

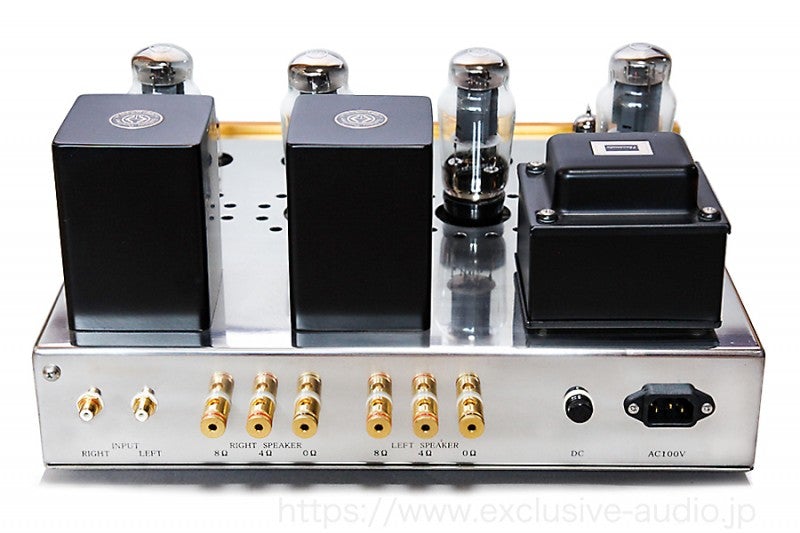

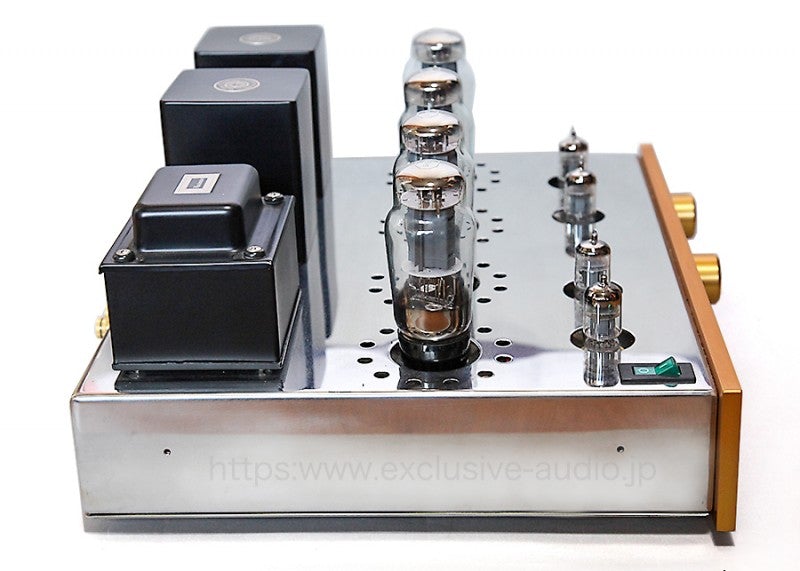

The chassis of the AS-6L6GSTG is made of a 2mm thick 18-18 stainless steel mirror finish that is bent and bent without any screws on the surface, and the internal mounting parts are made of 2mm thick oxygen-free copper material. This sturdy and beautiful mirror-finished casing is highly effective in anti-vibration and noise countermeasures. The heat dissipation measures are also solid, so there is no problem at all even if you use it for a long time even though it is a tube amplifier. The insulator is made by carving out an oxygen-free copper round bar and is attached with young cowhide leather in between. Circuit components are manufactured using components with good sound quality carefully selected by the company. The installation accuracy of the vacuum tube is also extremely high, and the noise generated from the vacuum tube mounting part is suppressed as much as possible, and the artistic aerial wiring that eliminates waste eliminates noise pickup by wiring.

Astro Electronics' unique manufacturing technology and transformers are all planned by Astro Electronics, which have the same performance as Hashimoto Trans's, and contribute greatly to the faithful reproduction of the original sound with high sound quality and no unnecessary decoration with high high sound quality and high transparency without noise and turbidity. The AS-6L6GSTG is 20W + 20W, but even in a large room, you can get powerful, pure sound quality and a rich amount of music information that is full of power throughout the entire area.
All 6L6 vacuum tubes are replaceable without adjustment, so you can easily enjoy a variety of 6L6s.

The self-biased capacitors used by the company are 200~300 micro capacitors used by general manufacturers, while Astro Electronics uses 8000 micro capacitors, which is an order of magnitude larger. This ensures that the sound is well represented even when the volume is turned down.

Spec
Vacuum tubes used 6L6 x4, 12AX7 x2, 12AU7 x2
Transformer used PT-270 x1, HW40-8x2, C-1-400x1
output 20W x 20W
bias Self-bias
Frequency response 10Hz~60kHz
Residual noise 1 mm V or less/1 W
Distortion 0.035%/1W
Input impedance A100kΩ
loudspeaker 4Ω, 8Ω
size Approx. W450 x H195x D400mm
weight 22kg


Attention

All transformers used are made by Hashimoto Trans and Astro Electronics of the same quality. There may be slight changes in specifications. Thank you for your understanding.
