MarkAudio PT70EI Linear Transformer Power Supply
Product code:MarkAudio PT70EI Linear Transformer Power Supply
Could not read receipt status

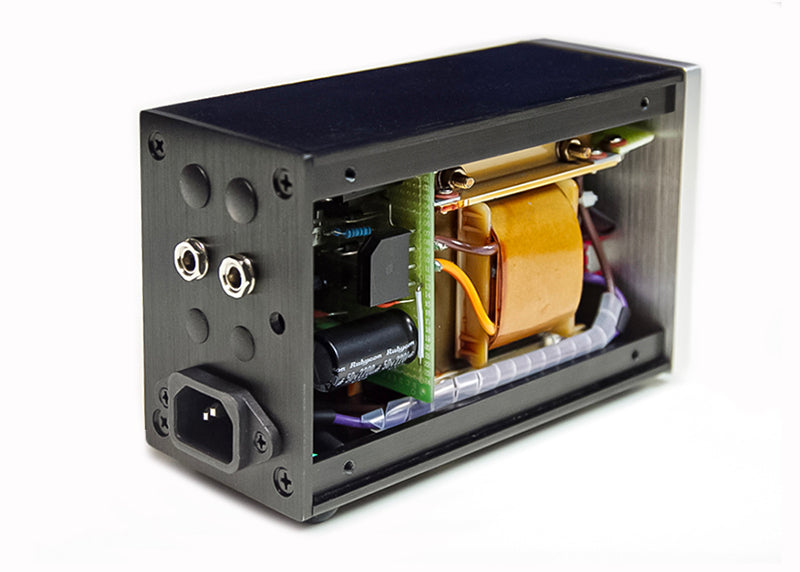

Linear power supply with large hand-wound EI core transformer
Overwhelming margin and richness of expression
PT70EI is a linear transformer power supply developed for the company's Duo5Active and Tozzi one Active speakers.
It uses Kenneth Wong's large hand-wound transformer and a TILM350 regulator.
Switching from a switching power supply to this power supply will transform your equipment into a smooth, three-dimensional sound.
The editor-in-chief of an audio magazine took the listening device home with him and has been using it ever since.
Once you hear the sound, you can't let go of it," he said happily.
The product can be used for amplifiers and DACs that use switching power supplies of up to 1.7A (12V~24V), so please specify the voltage when you purchase.
*Please specify the voltage at the time of purchase. The setting will be fine as long as the margin of error is within 10%.
It is not possible to adjust the voltage for each output.
(It is not possible to set one of the two channels to 12V and the other to 24V, etc.)
Spec.
| Output Voltage | 24V (can be changed from 12-24V) |
|---|---|
| Allowable current | 1.7A |
| Number of outputs | 2 |
|
Output terminal |
Outer diameter φ5.5mm, inner diameter φ2.1mm |
| Outer dimension | W70×H106×D166(mm) |
| Weight | Approx. 1.9Kg |
DC cable using NEGLEX OFC conductor
We offer DC cables that use mogami's shielded wires with Mogami Electric Wire NEGLEX OFC conductors to deliver pure electric power directly to amplifiers and DACs.
By using the internal two-core conductor for positive and the external shielded wire for GND, the coaxial structure is even more resistant to external noise.
