Jasmine Audio LP4.0 Tube Phono Amplifier
Product code: lp4-tubeJasmine Audio LP4.0 Tube Phono Amplifier
Regular price
¥460,000 円
Regular price
Sale price
¥460,000 円
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This is an import order item. Estimated shipping time is 7-14 business days. Please note that it may take longer if the manufacturer is out of stock or depending on shipping conditions.
Description
Deluxe full-tube design
Full tube circuit with 3 tubes in the power section and 4 tubes in the amplifier section. All components are HIFI level, carefully selected and paired.
MM and MC modes, high S/N ratio
The LP4.0 is compatible with both MM and MC cartridges, with a gain of 70dB in MC mode, so even low power 0.1mv MC cartridges will work without problems.

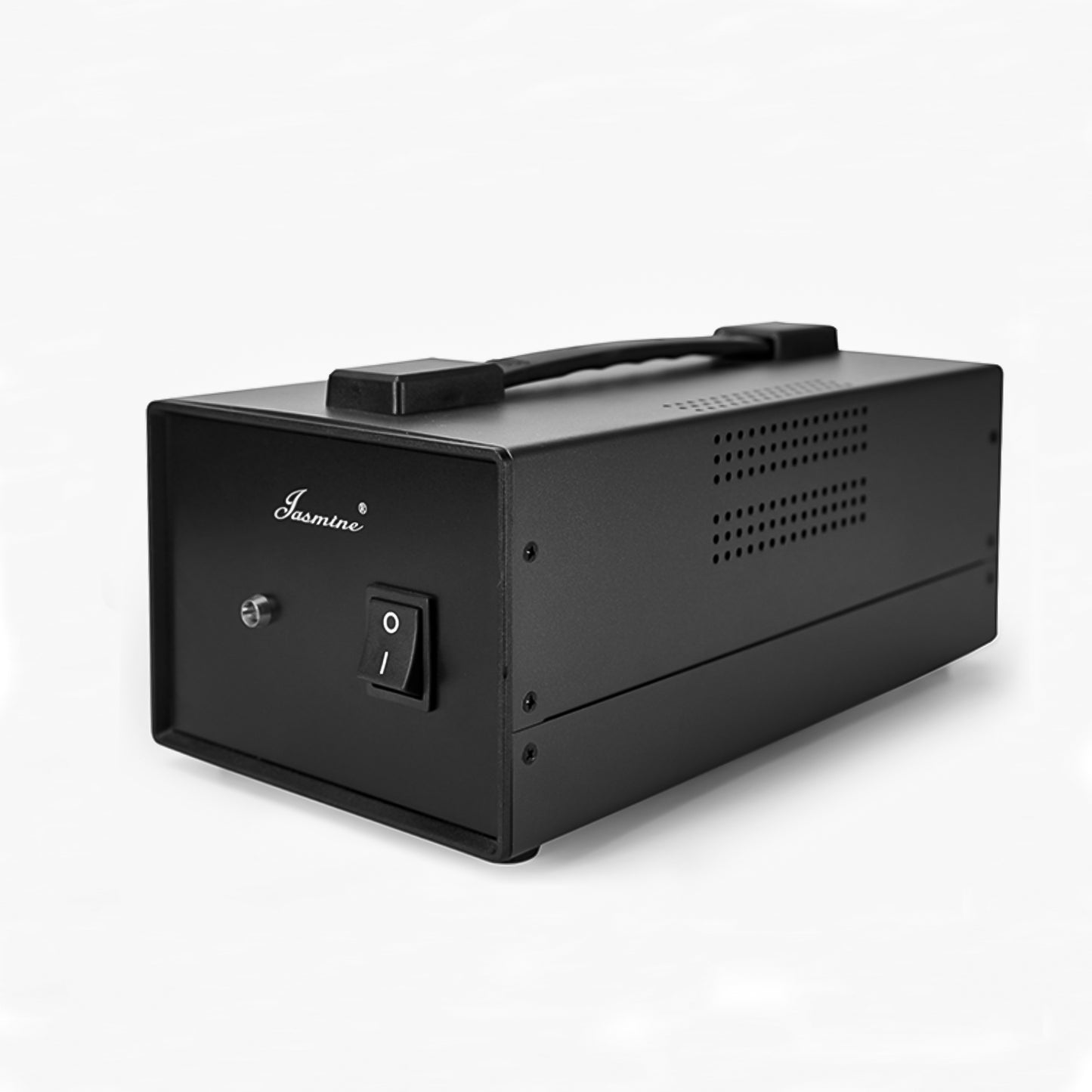

Independent power supply reduces interference
The power supply section of the LP4.0 is also designed in accordance with Hi-End standards.
The power supply chassis is separated from the amplification circuitry, effectively eliminating transformer radiation interference to the amplification circuitry.

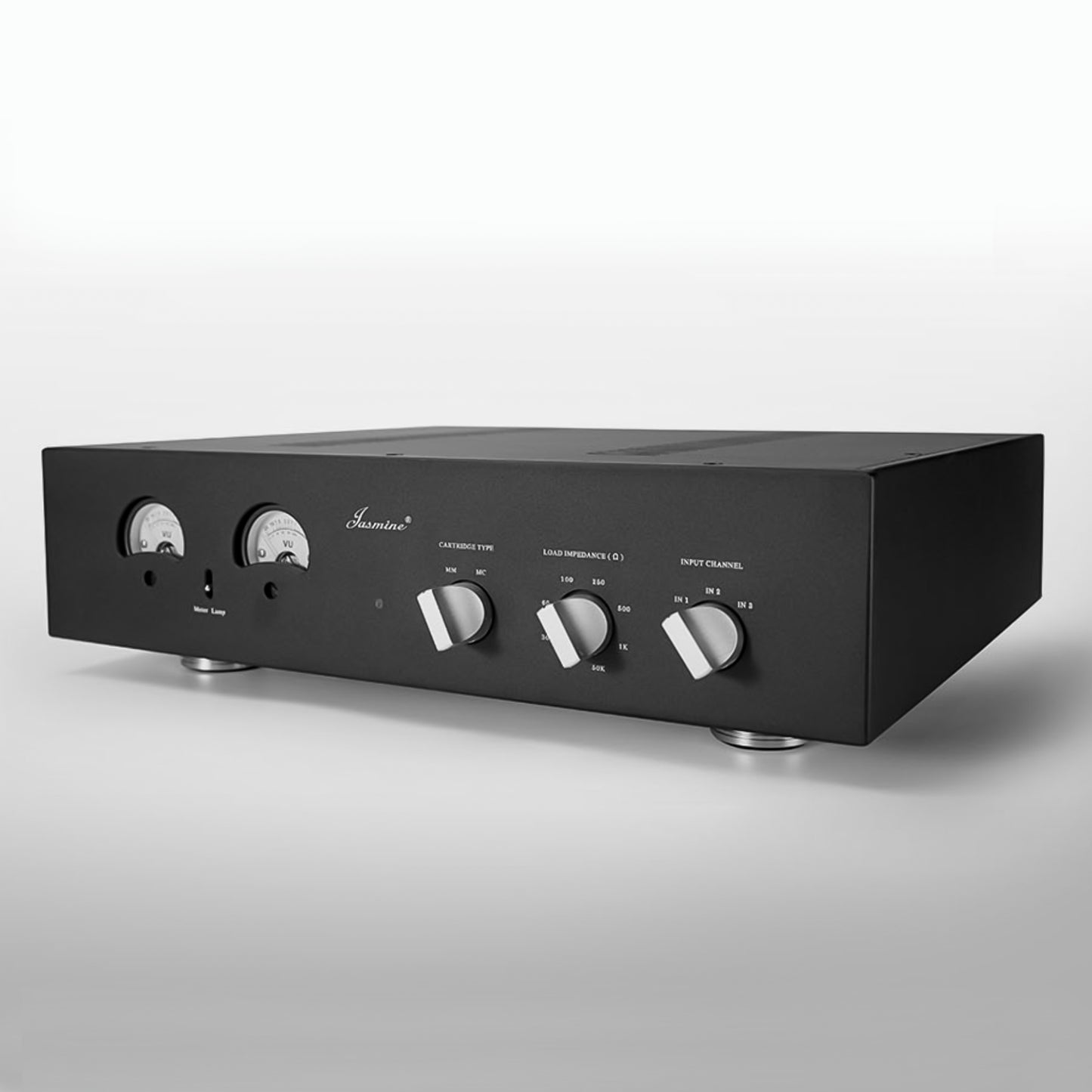

Traditional Style, Analog Features
Two VU meters are illuminated orange for warmth and comfort.
Spec

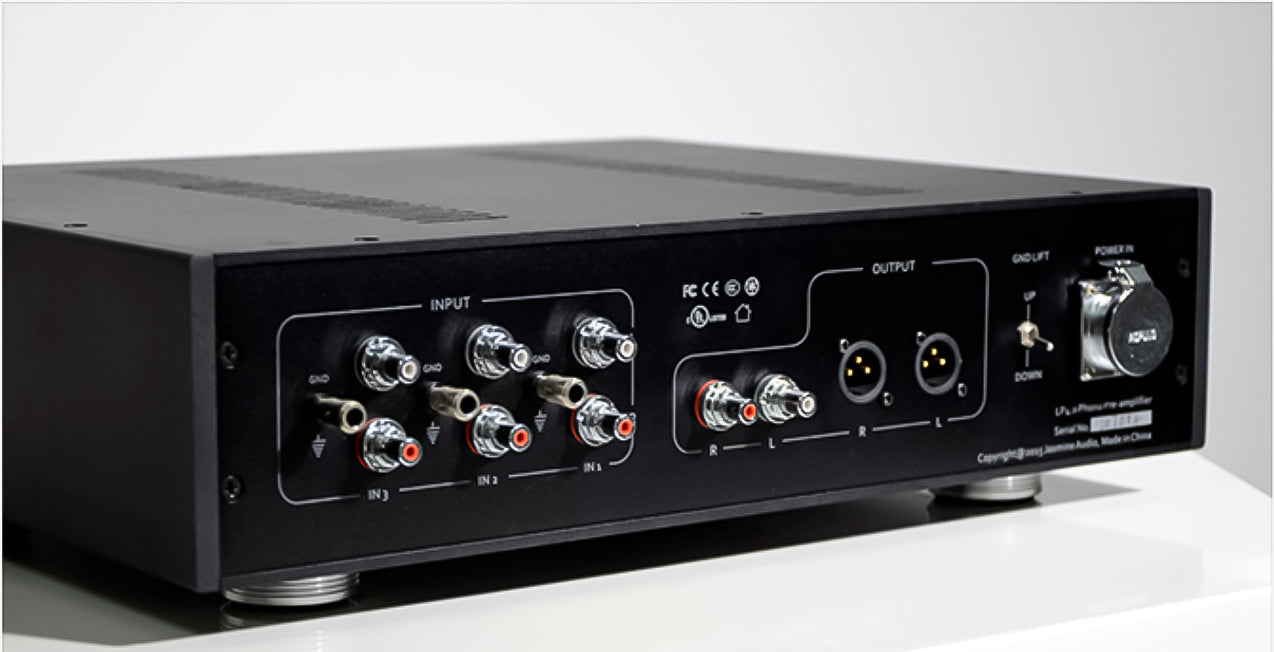

| Interface | INPUT: 3 * RCA STEREO OUTPUT: 1 * RCA STEREO, 1 * XLR STEREO |
|---|---|
| Gain (@1kHz) | RCA OUTPUT: MM=40dB/MC=65dB, XLR OUTPUT: MM-45dB/MC=70dB RIAA EQ DISTORTION: -0.03~ +0.15dB (20Hz to 20kHz) TOTAL DISTORTION: < 0.01 (20Hz to 20kHz) S/N: MM > 85dB, MC > 78dB |
| load impedance | MM = 47KQ MC = 15/30/60/100/500/1K (selectable) |
| Input capacitance | MM/MC = 100pF |
| Vacuum tube | POWER SUPPLY: 1* 6Z4, 1* 12AT7, 1* 6C19 PHONO STAGE: 2*12AX7 + 2*12AX7 |
| power consumption | 80W (MAX) Packing weight: 16KG |
| Dimensions | PHONO BOX: 430(W)x370(D)x120(H) mm POWER BOX: 280(W) x 150(D) x120(H) mm PACKING SIZE: 520*500*350mm |
